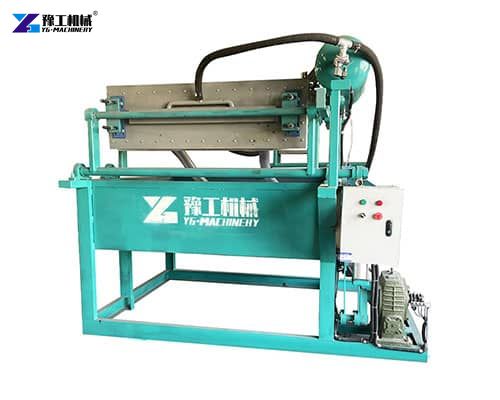

Small Egg Tray Making Machine

Small egg tray making machine is a semi-automatic or fully automatic system that transforms recycled paper pulp into molded egg trays. These trays protect eggs during storage and transportation, minimizing breakage and ensuring safe delivery to markets. Designed for small to medium-scale operations, these machines balance affordability, efficiency, and eco-friendliness, making them ideal for startups, local farms, and businesses with moderate production demands.

Parameters of the Small Egg Tray Making Machine

Model	YG-1000-3X1	YG-1500-4X1	YG-2500-3X4	YG-3000-4X4
Capacity	1000pcs/h	1500pcs/h	2500pc/h	3000pcs/h
Power	38kw/hour	38kw/hour	55kw/hour	60kw/hour
Voltage	380V50HZ	380V50HZ	380V50HZ	380V50HZ
Weight	2500kg	3000kg	4000kg	4800kg
Dimensions (main machine)	2600*2200*1900mm	2800*2200*1900mm	2900*1800*1800mm	3250*1800*1800mm
Paper consumption	80kg/hour	120kg/hour	200kg/hour	240kg/hour
Water consumption	160kg/hour	240kg/hour	400kg/hour	480kg/hour
Drying	dry naturally	dry naturally	multi-layer drying	multi-layer drying

Characteristics of a Small Egg Tray Making Machine

• Compact Design: Suitable for limited spaces, making them perfect for small workshops or farms.
• High Efficiency: Capable of producing hundreds of trays per hour with minimal labor.
• Eco-Friendly: Utilizes recycled paper, reducing environmental impact.
• Customizable Output: Adjustable molds to create trays for various egg sizes (quail, chicken, duck, etc.).
• Low Maintenance: Simple mechanical structure with easy-to-replace parts.

How to Produce Egg Trays?

The small egg tray making machine process involves four main stages:

• Pulping:
  Waste paper (newspapers, cardboard, etc.) is shredded and mixed with water to form a slurry.
  Additives like starch or glue may be added to enhance durability.
• Molding:
  The pulp is poured into egg tray-shaped molds.
  Excess water is drained, and the trays are formed under pressure.
• Drying:
  The wet trays are transferred to a drying system (natural air drying or heated chambers).
  This step ensures the trays achieve the required stiffness and moisture resistance.
• Finishing:
  Dried trays are stacked, counted, and prepared for packaging or immediate use.

Advantages of Small Egg Tray Manufacturing Equipment

1. Cost-Effectiveness
   The small egg tray making machine is budget-friendly compared to industrial-scale models, with lower upfront costs and operational expenses. Their compact size reduces space requirements, and using recycled paper slashes material costs.
2. Eco-Friendliness
   By repurposing waste paper, these machines reduce landfill contributions and deforestation. The production process consumes less water and energy, aligning with global sustainability goals.
3. Customization
   Operators can adjust mold designs to create trays for various egg sizes (quail, chicken, duck) or other products like fruit trays and cup carriers.
4. Scalability
   Small machines allow businesses to start modestly and expand production as demand grows. Many models support upgrades, such as adding automation or faster drying systems.
5. Low Maintenance
   With fewer complex components, small egg tray machines are easy to maintain. Routine cleaning and occasional part replacements ensure long-term functionality.
