what is a road roller machine?

The mini road roller has a reasonable structure, small size, large excitation force, and convenient site change. A small road roller is suitable for the compaction of asphalt pavements, sidewalks, bridges, parking lots, sports venues, and other narrow venues. A mini road roller compactor is ideal equipment for highways and municipal departments to maintain and repair trenches, streets, and squares in narrow areas. YG has mini road roller compactors in different configurations. Which kind of do you need? Contact us to get a mini road roller price now.

FVR-600D Hand Push Two Wheel Road Roller Price
FVR-600D Hand Push Two Wheel Road Roller

Free Quote

Parameter

Model FVR-600S FVR-600D FVR-850 FVR-880
Engine power 5.5HP 6.0HP 6.0HP 25HP/20HP
Engine HONDA, air-cooled 4-stroke, OHV, single-cylinder Air-cooled 4-stroke, OJV, single-cylinder Water-cooled 4-stroke, single-cylinder
Walking speed 2.4Km/h 0-4Km/h 0–4Km/h 0-5Km/h
Water tank volume 3.6L 35L 15L 60L
Fuel tank capacity 15L 6L 3.6L 19L
Start method Manual control Electric
Steel wheel size(forward) 600*426mm 600*426mm 700*560mm 740*530mm
Steel wheel size(back) / / 500*426mm 800*530mm
Driveway Hydraulic
Exciting force 15KN 25KN 28KN 32KN
Exciting frequency 70Hz
Vibration clutch mode Mechanical transmission, automatic centrifugal clutch
Gradeability 0.25 0.3
Weight 330KG 550kg 750kg 1000KG
[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]
FVR-600S Hand-Push Single Wheel Vibratory Road Roller
FVR-600S Hand-Push Single Wheel Vibratory Road Roller

Free Quote

[/lgc_column] [lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]
FVR-600D Hand Two Wheel Vibratory Road Roller
FVR-600D Hand Two Wheel Vibratory Road Roller

Free Quote

[/lgc_column] [lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]
FVR-850 Ride-On Road Roller
FVR-850 Ride-On Road Roller

Free Quote

[/lgc_column] [lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]
FVR-880 Hydraulic Ride-On Road Roller
FVR-880 Hydraulic Ride-On Road Roller

Free Quote

[/lgc_column]

Classification of Small Road Roller

  • Mini road rollers are mainly divided into single drum road roller and double drum road roller in terms of structure.
  • In terms of function, a mini asphalt roller is mainly divided into a semi-hydraulic vibratory roller and a full-hydraulic vibratory roller.
  • Mainly divided into tonnage: 2-2.5 tons, 3-3.5 tons.
  • From the name, the small road roller is mainly divided into the small single-drum vibratory roller, mini double-drum vibratory roller, and small hand road roller.
  • At present, there are three types of compact rollers produced in China: walk-behind single-wheel rollers; walk-behind two-wheel rollers; and ride-on rollers.
  • Engines are divided into diesel engines and gasoline engines.
FVR-850 Single Wheel Ride-On Road Roller
FVR-850 Single Wheel Ride-On Road Roller

Free Quote

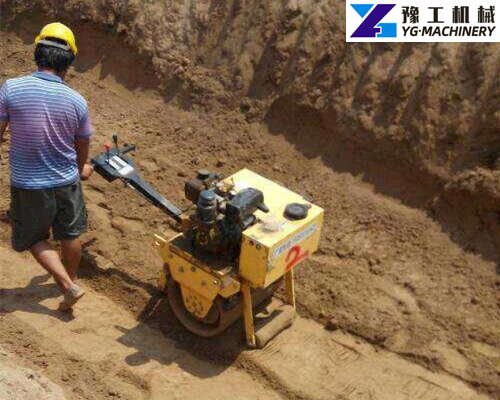

Application of mini road roller

mini road roller application
mini road roller application
  1.  Sublayer compaction of cement stabilized layer in highway municipal maintenance and replacement construction. Compaction of asphalt concrete at the edges and corners of ditch wells.
  2. In highway construction, when pipe culverts, passages, bridge abutments, and other structures are backfilled, compaction operations in areas where large road rollers cannot work.
  3. Municipal garden landscape, real estate residential area landscape, pavement of access roads in golf course construction, and pavement of sidewalks are compacted.
  4. In other construction occasions where the construction area is narrow and the weight of the compaction equipment is sensitive, the mini road roller compactor can complete compaction flexibly and efficiently.

Free Quote

Related Products

YG Machinery has a series of road machinery for sale. Including new road repair equipment and road maintenance equipment. Such as thermoplastic road marking machines, cold paint road marking machines. Crack sealing machine. Road roller for sale. Small plate compactor. Road core drilling machine.Asphalt spreader. Chipping machine. Polyurethane spraying machine. Road milling machine. A grinding machine, etc. Please feel free to leave your requirement.
