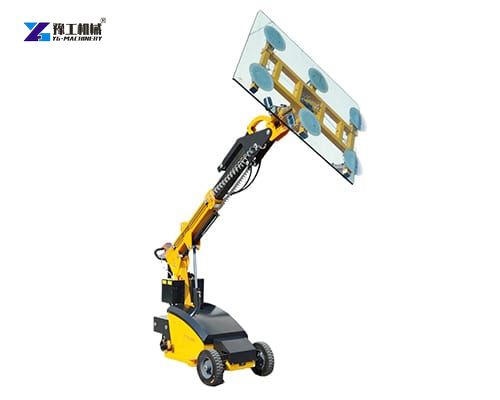

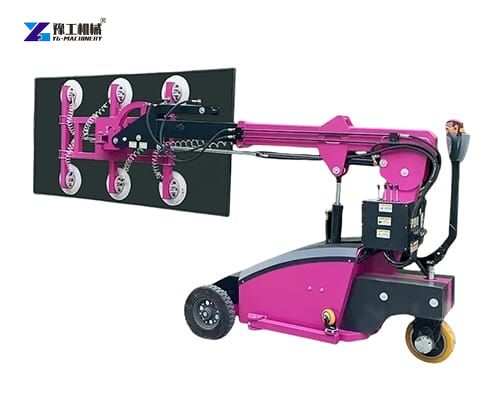

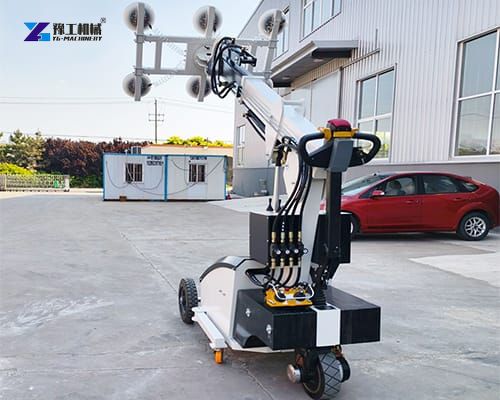

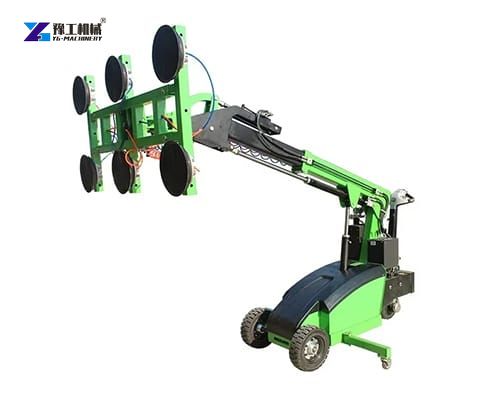

Glass handling robot is an automated system designed to lift, move, and position glass sheets, panels, and other delicate glass products with unparalleled accuracy and safety. These machines are a specialized form of industrial robot, engineered with a specific purpose in mind. These robots are not just for lifting. They are an all-in-one solution for a variety of tasks, including loading and unloading, cutting, grinding, polishing, and even assembly. This advanced piece of equipment combines robotics, vacuum suction, hydraulic systems, and precision controls to perform tasks that once required multiple workers and extensive safety measures. The adoption of these robots is driven by the clear benefits they offer in terms of safety, speed, and overall product quality.
Glass Handling Robot Specifications
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | ||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | |||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered, optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | ||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | ||||
Features of Glass Handling Robot
Glass installation robots are engineered with technology designed to maximize productivity while minimizing risks. Some of the most notable features include:
- Vacuum suction pads: Strong suction pads ensure secure gripping of glass sheets of various sizes and thicknesses.
- Wireless or remote control operation: Operators can control movements from a safe distance, reducing risks of injury.
- Compact mobility: Designed with compact frames and wheel systems, they can easily maneuver through tight spaces, doorways, or construction sites.
Advantages Over Manual Handling
The implementation of a glass handling robot brings a multitude of compelling advantages that directly impact the bottom line and workplace safety.
- The most significant advantage is the drastic enhancement in safety. By removing workers from the hazardous tasks of lifting heavy, sharp, and fragile glass. This fosters a safer work environment and reduces liability and insurance costs.
- Secondly, the level of precision and consistency achieved is humanly impossible. Robots place glass with sub-millimeter accuracy every single time, leading to a dramatic reduction in breakage and waste due to handling errors. This directly improves material yield and reduces costs.
- Furthermore, it can operate continuously at a high, consistent speed, significantly increasing throughput and capacity. This allows facilities to meet tighter deadlines and handle larger orders.
Applications of Glass Lifting Robots
Glass handling robots are versatile machines that find applications in various fields, including:
- Construction: Installing large glass windows, curtain walls, and facades in high-rise buildings.
- Manufacturing: Transporting and assembling glass components in factories.
- Automotive industry: Handling windshields and vehicle windows during production.
- Warehousing and logistics: Safe storage and retrieval of fragile glass sheets.
- Renewable energy: Installing glass panels for solar power plants.
Maintenance of Glass Glazing Robots
Like any machine, glass handling robots require regular maintenance to ensure long service life and reliable performance. Recommended practices include:
- Regular inspection of suction pads: Worn-out pads should be replaced immediately to prevent slippage.
- Battery maintenance: Keep batteries charged and avoid deep discharges to extend lifespan.
- Lubrication of moving parts: Ensure smooth motion and reduce wear on mechanical components.
- Software updates: For advanced models, keep control software up to date.
- Cleaning sensors: Dust or debris can interfere with safety sensors, so they should be checked frequently.
