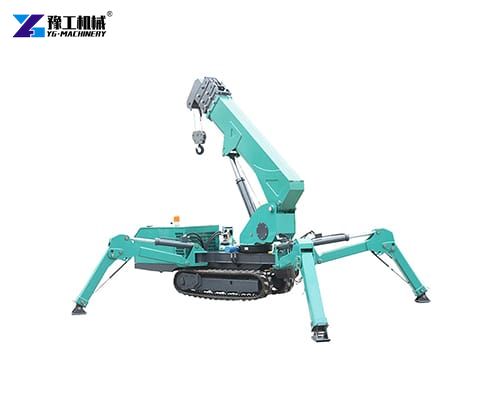

Spider crawler crane is a compact lifting machine designed for work in narrow spaces and complex job sites. It is widely used in construction, glass installation, factory maintenance, and indoor lifting projects. Compared with large cranes, the mini spider crane is lighter, easier to move, and more flexible during operation. Its spider-like outriggers provide excellent balance and stability, allowing the machine to work safely even on uneven ground. Many companies choose a mini crawler crane because it can pass through standard doors, elevators, and tight pathways where traditional cranes cannot enter. The machine is also easy to transport and quick to set up, which helps reduce labor costs and improve work efficiency. With strong lifting power and compact dimensions, it has become an important solution for modern lifting industries.
Technical Data of the Spider Crawler Crane
| Model | YG-3T | YG-5T | YG-8T |
| Maximum operating radius | 8.83m×0.2t | 14m×0.5t | 16.5m*0.5t |
| Maximum ground lift | 9.2m | 16.8m | 18m |
| Hook rising speed | 0-8m/min (4 ropes） | 12m/min (4 ropes） | 12m/min (4 ropes） |
| Wire rope specifications | φ8mm×45m | φ11mm×80m | φ11mm×80m |
| Telescopic arm form | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure |
| Telescopic arm length/time | 3.1m-9.2m/20sec | 4.7m-16.5m/54sec | 4.7m-16.5m/54sec |
| Boom angle/time | 0-78°/13sec | 0-78°/13sec | 0-78°/13sec |
| Rotation angle/speed | 0-360°（continuous）/60sec | 0-360°（continuous）/38sec | 0-360°（continuous）/38sec |
| Overall size | 2.98*0.8*1.5m | 5*1.5*1.9m | 5*1.6*2.18m |
| Deadweight | 2700kg | 6200kg | 7200kg |
Spider Crawler Crane Delivers Flexible and Efficient Lifting Performance
The spider crawler crane is designed to provide flexible lifting solutions for different industries and environments. One of its main features is its compact size, which allows it to operate in limited spaces such as shopping malls, warehouses, tunnels, and high-rise buildings. The foldable outriggers help the machine maintain excellent stability during heavy lifting operations.
Another important feature is its lightweight structure combined with strong lifting capacity. Even though the machine is small, it can handle heavy materials such as steel beams, glass panels, construction equipment, and industrial parts with high efficiency.
In addition, it often comes with intelligent control systems that make operation easier and safer. Operators can use remote controls to manage lifting tasks from a safe distance, reducing risks at the job site. Because of these features, the mini crawler crane for sale is widely recognized as a reliable and cost-effective lifting machine for modern construction and industrial projects.
How Does A Mini Spider Crane Work?
- Before operation begins, the machine extends its spider-like legs to create a balanced and secure working platform. These outriggers can be adjusted individually, allowing the spider crawler crane to operate safely on uneven surfaces or confined spaces.
- Once the crane is stabilized, the hydraulic system powers the boom and lifting hook to raise, lower, and move heavy materials with precision.
- The operator controls the small spider crane through a control panel or wireless remote system. The telescopic boom can extend to different heights and angles, helping workers reach difficult locations inside buildings or construction areas.
- Because of its precise control and compact design, the mini spider crane can complete lifting tasks that larger cranes cannot handle efficiently. This working principle allows the machine to improve productivity while reducing labor intensity and project delays in many industries.
Applications Across Construction, Glass Installation, and Industrial Maintenance
The spider crawler crane is widely used in many industries because of its flexibility and strong lifting performance.
- In the construction industry, it is often used for lifting steel structures, building materials, and heavy equipment in areas with limited space.
- Glass installation companies also prefer the mini crawler because it can safely lift and position large glass panels at high elevations with precision.
- Its compact body allows it to enter shopping centers, office buildings, and narrow indoor workspaces where larger lifting machines cannot operate.
- In factories and industrial plants, the mini spider crane is commonly used for equipment maintenance, machine installation, and material handling.
- Shipyards, railway projects, and power stations also benefit from its stable lifting ability and easy transportation.
Thanks to its versatility, the machine has become an important lifting solution for businesses looking to improve efficiency and workplace safety.
Why Choose Our Mini Crawler Crane Products And Services
We are committed to providing high-quality spider crawler crane solutions for customers around the world. Our company focuses on advanced manufacturing technology, strict quality control, and continuous product improvement. Every mini spider crane is carefully tested before delivery to ensure stable performance, safety, and durability in different working environments. We offer multiple models with different lifting capacities to meet various customer requirements in construction, industrial maintenance, glass installation, and other industries.
In addition to reliable products, we also provide professional customer support and customized solutions. Our experienced technical team can recommend suitable mini crawler crane models based on project needs and working conditions. We support customers with installation and operation guidance, spare parts supply, and after-sales service to ensure smooth equipment operation. If you are looking for this machine, welcome to contact us for more details.
