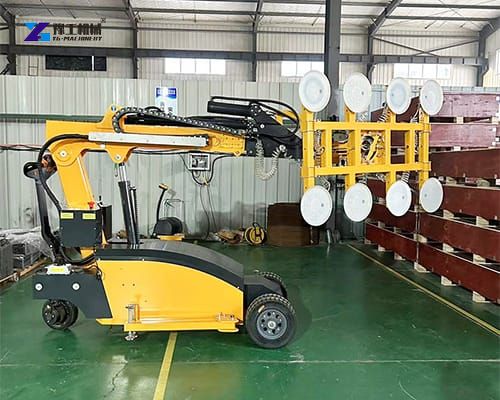

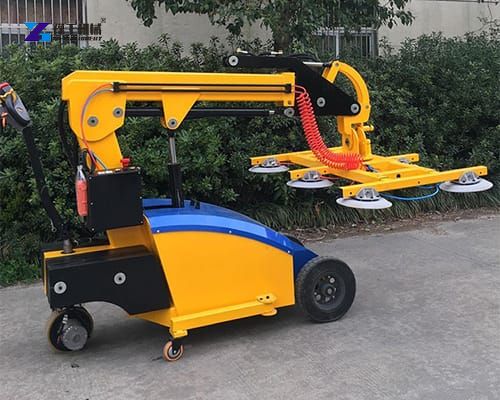

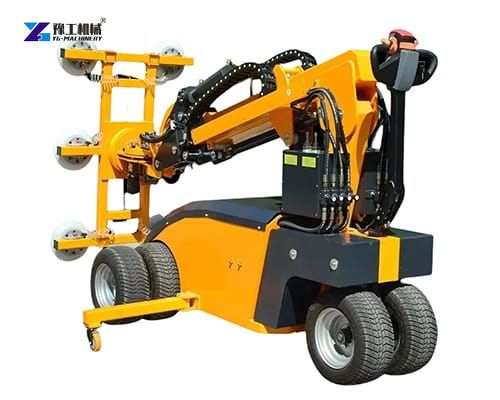

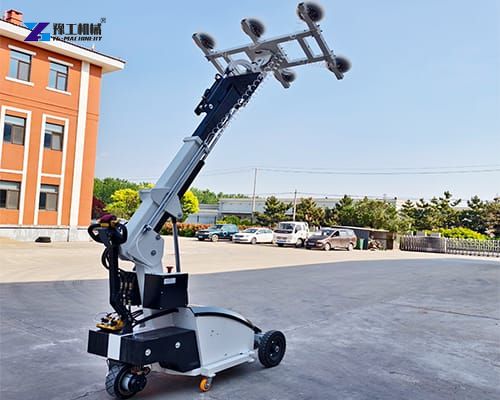

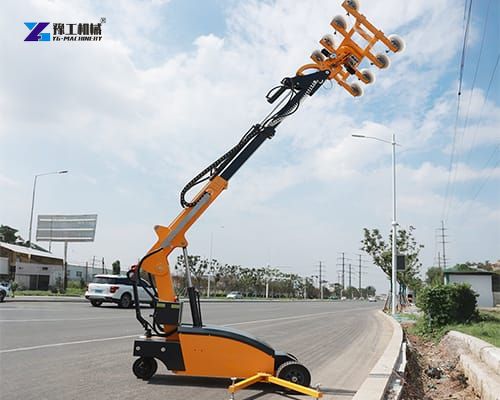

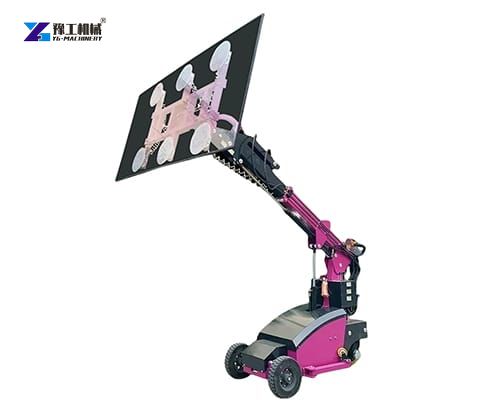

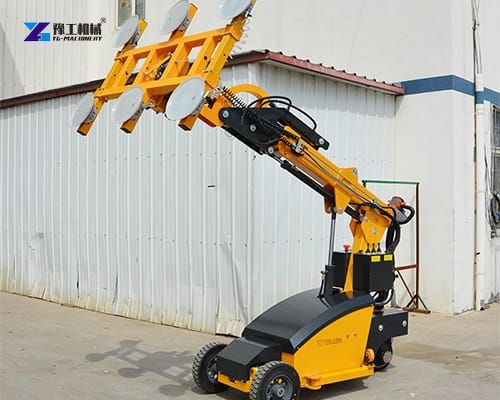

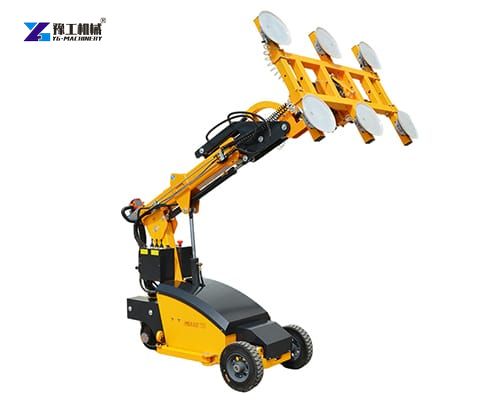

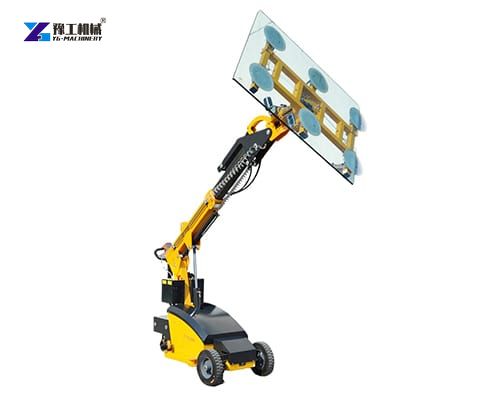

Glazing robot is an advanced robotic systems designed to lift, transport, and install glass panels with unmatched precision and safety. Engineered for challenging environments like high-rise buildings, confined spaces, or hazardous industrial settings, these robots replace manual labor with automated solutions. Equipped with vacuum suction cups, articulated arms, and intelligent sensors, they ensure accurate placement while minimizing risks of injury or material damage.
Technical Specifications of Glazing Robot
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | ||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | |||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered, optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | ||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | ||||
Features of the Glazing Robot
- High-precision suction system for secure grip on glass or smooth surfaces
- Electric or battery-powered drive for mobility and eco-friendly operation
- Adjustable arm and rotation capability for positioning glass at any angle
- Wireless remote control for precise movement and safe operation
- Compact design allowing access through narrow doors and confined spaces
Benefits of Automating the Glazing Process
- Unmatched Precision & Quality
Eliminate Human Error: Achieve consistent, perfect alignment on every single panel.
Perfect Sealant Beads: Programmable paths for consistent and reliable sealant application. - Dramatically Increased Productivity
24/7 Operation Potential: Work multiple shifts to drastically reduce project timelines.
Handle Larger Panels: Safely manage heavier and oversized glass units that are difficult for human crews. - Enhanced Worker Safety
Reduce On-Site Personnel: Minimize the number of workers required for high-risk tasks at height.
Controlled Environment: The glazing robot bears the load, reducing the risk of drops and accidents. - Significant Cost Reduction
Reduced Rework: Precision installation means no costly delays from misaligned or broken panels.
Predictable Scheduling: Accurate, repeatable processes make project timelines more reliable.

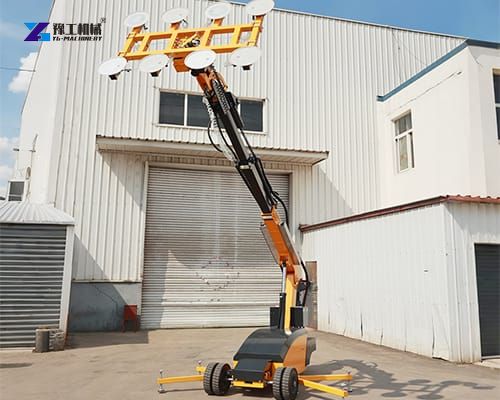

Glass Handling Robot Structure and Components
A typical glazing robot consists of the following parts:
- Base frame and wheels: Provide stability and mobility on-site.
- Articulated lifting arm: Extends vertically and horizontally for flexible reach.
- Vacuum suction system: Securely holds the glass during installation.
- Control panel or remote: Enables the operator to move and tilt the load accurately.
- Battery or power supply: Ensures long-lasting performance with low energy use.
Maintenance and Care for the Glass Installation Machine
To ensure long-term performance, glazing robots should undergo regular maintenance:
- Inspect vacuum cups for wear or cracks before each use.
- Clean filters and suction lines to maintain strong vacuum pressure.
- Check hydraulic and electrical systems periodically.
- Lubricate moving joints for smooth operation.
