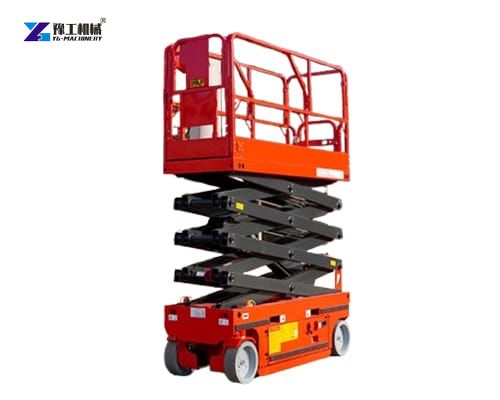

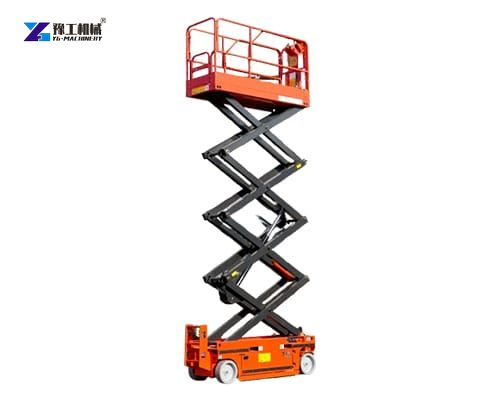

Hydraulic scissor lift platform is a mechanical lifting device that uses a crisscrossing steel support structure (resembling a pair of scissors) to raise and lower a work platform vertically. The lifting action is powered by hydraulic cylinders, which provide the force needed to extend the scissor arms and elevate the platform. These platforms are known for their stability, strong load-bearing capabilities, and smooth vertical movement. They are often equipped with safety features such as guardrails, emergency stop buttons, and overload protection to ensure safe operation.
Hydraulic Scissor Lift Platform Parameters

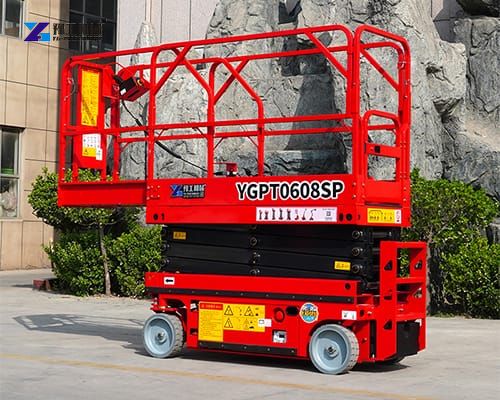

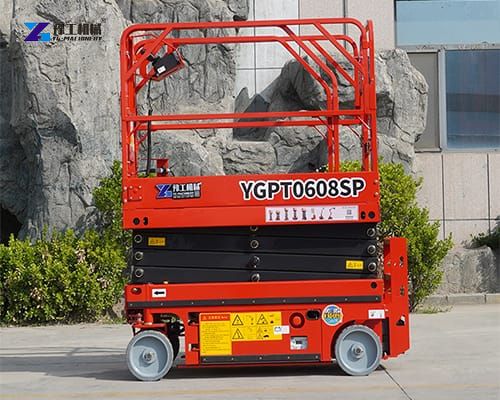

| Model | YG0608SP | YG0608 | YG0810NP | YG0810 | YG1012 | YG1214 | YG1416 |
| Up(m) | 5.8 | 6 | 8 | 8 | 10 | 11.8 | 13.7 |
| Load(kg) | 230 | 450 | 230 | 450 | 320 | 320 | 230 |
| Platform size(m) | 1.67*0.74 | 2.27*1.12 | 2.27*0.81 | 2.27*1.12 | 2.27*1.12 | 2.27*1.12 | 2.64*1.12 |
| Outline dimensions/guardrail folding(m) | 1.86*0.76*1.84 | 2.48*1.19*1.66 | 2.48*0.83*1.99 | 2.48*1.19*1.78 | 2.48*1.19*1.91 | 2.48*1.19*2.03 | 2.85*1.25*2.105 |
| Lifting motor | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/4.5kw | 24v/4.5kw |
| Weight(kg) | 1580 | 2170 | 2260 | 2360 | 2640 | 2980 | 3600 |
Components And Working Principles
- Scissor Mechanism
The core of a hydraulic scissor lift platform is its scissor-shaped folding frame. Constructed from high-strength steel or aluminum, this mechanism ensures even weight distribution and stability during operation. - Hydraulic System
The hydraulic system comprises pumps, cylinders, and hoses that generate the force needed to extend or retract the scissor arms. - Platform And Controls
The platform surface is typically made of non-slip materials to ensure worker safety. Modern lifts feature intuitive controls, including push-button panels and emergency stop functions. Some models also offer remote control operation for enhanced convenience.
Applications Of Hydraulic Scissor Lift Platforms
- Warehousing And Logistics
In warehouses, these lifts streamline order picking, pallet handling, and inventory restocking. Their ability to reach elevated shelving units reduces manual labor and accelerates fulfillment processes. - Construction And Maintenance
Contractors use scissor lifts for tasks like painting, electrical installations, and HVAC repairs. Their compact footprint allows access to tight spaces in buildings under construction. - Retail And Hospitality
Retail stores employ scissor lifts for window displays, signage installation, and seasonal decorations. Hotels and event venues use them for stage setups, lighting adjustments, and maintenance in grand halls.
Advantages Of Hydraulic Scissor Lift
- Enhanced Safety
The scissor mechanism’s design provides inherent stability, reducing the risk of tipping. Features like guardrails, emergency stop buttons, and overload protection further prioritize user safety. - Space Efficiency
Hydraulic scissor lift platform require minimal floor space. Their vertical movement allows operation in narrow aisles or crowded workshops. - Versatility
Available in various sizes and load capacities, these lifts adapt to diverse tasks.
