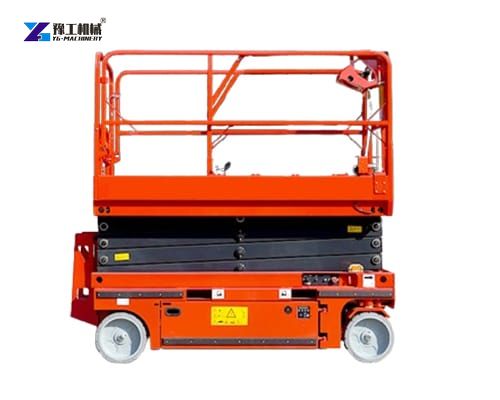

Mobile hydraulic lift platform is a type of aerial working platform designed to lift people or materials vertically using a hydraulic system. Unlike fixed lifts, mobile platforms are equipped with wheels or casters that allow easy movement between work areas. The hydraulic mechanism inside ensures smooth elevation and descent while providing stability and strength to handle heavy loads. These machines come in different configurations—scissor lifts, telescopic lifts, articulated boom lifts, and vertical mast lifts—each serving specific needs across industries. They are particularly useful in environments where temporary or flexible height access is required.
Hydraulic Mobile Lift Platform Parameters
| Model | YG0608SP | YG0608 | YG0810NP | YG0810 | YG1012 | YG1214 | YG1416 |
| Up(m) | 5.8 | 6 | 8 | 8 | 10 | 11.8 | 13.7 |
| Load(kg) | 230 | 450 | 230 | 450 | 320 | 320 | 230 |
| Platform size(m) | 1.67*0.74 | 2.27*1.12 | 2.27*0.81 | 2.27*1.12 | 2.27*1.12 | 2.27*1.12 | 2.64*1.12 |
| Outline dimensions/guardrail folding(m) | 1.86*0.76*1.84 | 2.48*1.19*1.66 | 2.48*0.83*1.99 | 2.48*1.19*1.78 | 2.48*1.19*1.91 | 2.48*1.19*2.03 | 2.85*1.25*2.105 |
| Lifting motor | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/3.3kw | 24v/4.5kw | 24v/4.5kw |
| Weight(kg) | 1580 | 2170 | 2260 | 2360 | 2640 | 2980 | 3600 |
Structural Composition of Mobile Hydraulic Lift Platform
A well-engineered mobile hydraulic lift platform consists of several core components working together to ensure performance, safety, and durability.
- Base Frame:
The base frame provides structural stability and supports the entire lift. It houses the wheels or outriggers and serves as the foundation for hydraulic and electrical components. - Lifting Mechanism:
Most mobile lifts use a scissor-type mechanism or telescopic mast system. The hydraulic cylinders push the arms apart, resulting in vertical movement. - Hydraulic System:
The heart of the machine, this system includes hydraulic cylinders, oil tanks, pumps, and valves. It generates the pressure needed to lift the platform safely and smoothly. - Platform:
The top platform where operators or materials are placed. It often features non-slip flooring, safety rails, and control panels for operation. - Control System:
Control panels are usually found both on the platform and at the base. Operators can raise, lower, or move the platform with precision.
Hydraulic Scissor Lift Platform Features
Modern mobile hydraulic lift platforms are equipped with cutting-edge features that enhance efficiency and user experience:
- Adjustable Working Height: Smooth vertical lifting for flexible working heights.
- Strong Load Capacity: Capable of carrying heavy materials or multiple workers at once.
- Easy Mobility: Equipped with wheels, making relocation quick and effortless.
- Safety Systems: Includes emergency stop buttons, overload protection, and automatic descent systems.
- Compact Design: Easy to store and transport.
- Multiple Power Options: Available in electric, battery, or diesel versions for different environments.
- Low Noise and Vibration: Ensures comfortable operation in noise-sensitive areas like hospitals or libraries.
