Tracked spider crane is a compact and flexible lifting machine designed for projects where space is limited and strong lifting ability is needed. This machine combines a crawler base with a small crane body, allowing it to move smoothly on different surfaces and work in narrow areas. Compared with traditional lifting equipment, a crawler spider crane offers better flexibility, easier transportation, and safer operation. It is often used in construction, maintenance, glass installation, and industrial work. With advanced design and stable structure, this equipment can help workers complete lifting tasks more efficiently. Various models are available to meet different working needs, and some can deliver strong lifting performance despite their compact size. The machine also supports remote operation, which improves safety and reduces labor pressure. For more details about the specific model, please get in touch with us.
Parameters of YG Tracked Spider Crane for Sale
| Model | YG-3T | YG-5T | YG-8T |
| Maximum operating radius | 8.83m×0.2t | 14m×0.5t | 16.5m*0.5t |
| Maximum ground lift | 9.2m | 16.8m | 18m |
| Hook rising speed | 0-8m/min (4 ropes） | 12m/min (4 ropes） | 12m/min (4 ropes） |
| Wire rope specifications | φ8mm×45m | φ11mm×80m | φ11mm×80m |
| Telescopic arm form | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure |
| Telescopic arm length/time | 3.1m-9.2m/20sec | 4.7m-16.5m/54sec | 4.7m-16.5m/54sec |
| Boom angle/time | 0-78°/13sec | 0-78°/13sec | 0-78°/13sec |
| Rotation angle/speed | 0-360°（continuous）/60sec | 0-360°（continuous）/38sec | 0-360°（continuous）/38sec |
| Overall size | 2.98*0.8*1.5m | 5*1.5*1.9m | 5*1.6*2.18m |
| Deadweight | 2700kg | 6200kg | 7200kg |
Tracked Spider Crane Provides Excellent Flexibility and Reliable Performance
The mini spider crane is known for its unique design and strong adaptability in many working environments.

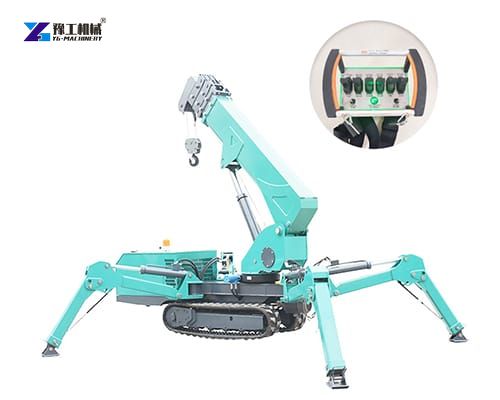

- The crane uses crawler tracks and multiple support legs to keep stable during operation, making it suitable for indoor and outdoor projects.
- Its compact body allows it to enter places where large cranes cannot work, such as factories, shopping centers, and small construction sites.

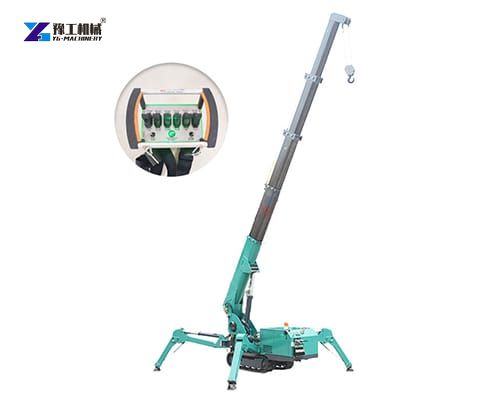

- The equipment is designed with a telescopic boom system that helps operators adjust the working range according to different tasks.
- The tracked spider crane also focuses on easy control, low ground pressure, and simple maintenance. It can move across uneven surfaces while keeping good balance.
With these features, this machine becomes an effective solution that need safe and efficient lifting support in challenging locations.
How Does the Spider Crane Work During A Lifting Operation?
The working principle of a tracked spider crane is based on a combination of movement, support, and lifting control. First, the crawler system helps the crane travel to the required position, even when the ground condition is not perfect. After reaching the working area, the support legs open to create a stable platform for lifting. The operator then controls the boom, hook, and other parts to move the load carefully.
The crane uses a hydraulic system to provide smooth power, allowing the lifting process to be controlled with accuracy. Sensors and safety systems help monitor the machine condition and reduce risks during operation. Unlike large cranes that need wide working space, this equipment can complete many lifting jobs in smaller areas. Its design makes the operation process easier for workers while improving productivity.
Versatile Applications Across Construction, Maintenance, and More
The true value of this machine shines through in its incredible versatility across numerous industries.
- In the construction world, it is a lifesaver for building glass facades, installing steel beams, and carrying materials to upper floors during urban projects where space is limited.
- For maintenance teams, the crane is ideal for repairing heavy HVAC units on rooftops, changing large windows in high-rise buildings, and even assisting in building demolition by carefully removing specific sections.
- It is also a favorite for infrastructure projects such as bridge repair and pipeline installation, where its ability to drive on soft or muddy terrain is a major asset.
- Moreover, the entertainment industry uses these cranes to lift heavy lighting rigs and sound equipment for concerts and film sets.
Why the Crawler Spider Crane Offers Superior Safety and Cost-Effectiveness?
When considering heavy equipment, safety and budget are always top priorities, and the tracked spider crane excels in both areas.
- By using this compact crane, businesses can save a significant amount of money on lifting, setup, and maintenance costs.
- Safety is also dramatically improved because it reduces the risks associated with manual lifting and using oversized equipment in tight spots.
- The machine’s automatic overload protection system prevents the crane from lifting more than it can handle, giving operators peace of mind.
- Furthermore, the use of wireless technology means workers can keep their distance from the load, protecting them from potential hazards.
- With its low ground pressure and rubber tracks, it also protects the job site’s surface, saving money on potential damage repairs.
Discover Our Spider Cranes and Get a Quote Today
We offer a full lineup of models to suit different lifting capacities and applications, with a max lifting weight from 1.5 tons to 16 tons. Among these, the 3-ton, 5-ton, and 8-ton types are popular. If you have specific requirements about this machine, please tell us, and we will provide the proper model for you. Do you want to know the lifting solution for your projects? Contact us today and we will help you find the perfect match for your items.
