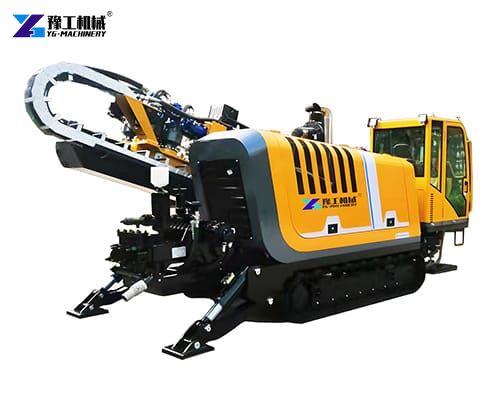

HDD machine for sale (horizontal directional drilling machine) is a specialized drilling rig used for installing underground utilities without trenching. The machine drills a pilot bore along a predetermined path and then enlarges the hole for utility placement. HDD machines are engineered to offer high torque, thrust/pullback force, and advanced automation, making them ideal for urban infrastructure projects, telecom installations, and environmental remediation. Horizontal directional drilling offers a trenchless solution that minimizes disruption and maximizes efficiency.
Specifications of HDD Machine for Sale
| Model | YG-50LS | YG-130LS | YG-150LS | YG-200LS |
| Weight | 3650kg | 4750kg | 4700kg | 8800kg |
| Max. Thrust & Pullback Force | 51kN | 135kN | 150kN | 205kN |
| Max. Torque | 2235N·m | 4500N·m | 4500N·m | 6500N·m |
| Engine Power | 43kw | 93kw | 93kw | 113kw |
| Walking Speed | 2.5km/h | 2.5-4.5km/h | 2.5-4.5km/h | 2.5-4km/h |
| Entry Angle | 14°-17° | 12°-22° | 12°-22° | 12°-22° |
| Drill Rod Size | φ42*1800mm | φ50/φ60*3000mm | φ60*2000mm | φ60*3000mm |
| Suggest Reaming Diameter | ≤φ400mm | ≤φ700mm | ≤φ700mm | ≤φ800mm |
| Dimension(L*W*H) | 3870*1300*1470mm | 5470*1670*2040mm | 4200*1700*2140mm | 6750*2050*2400mm |
| Max. Thrust & Pullback Speed | 61m/min | 36m/min | 46m/min | 60m/min |
| Max. Rotation Speed | 215r/min | 193r/min | 193r/min | 230r/min |
| Max. Mud Flow | 75L/min | 200L/min | 180L/min | 250L/min |
| Max. Mud Pressure | 6Mpa | 8Mpa | 8Mpa | 8Mpa |
| Max. Climbing Gradient | 17° | 16° | 17° | 17° |
| Drill Rod Box Capacity | 44pcs(4*11) | 48pcs(4*12) | 56pcs(4*14) | 48pcs(4*12) |
| Suggest Crossing Length | ≤100m | ≤200m | ≤200m | ≤300m |
Key Features of YG’s HDD Machine for Sale
When evaluating a horizontal directional drilling machine, prioritize these critical features:
- Torque & Thrust Capacity: Our machines deliver industry-leading power for deep, large-diameter bores.
- Versatility: Compatible with diverse soil and rock conditions.
- Eco-Friendly Operation: Lower emissions and noise pollution align with sustainable practices.
- Remote Monitoring: Real-time diagnostics prevent downtime.
Why Invest in a Horizontal Directional Drilling Machine?
Modern infrastructure projects demand smarter solutions. A HDD machine for sale from YG offers:
- Reduced Site Impact: Drill beneath roads, rivers, and landscapes without trenching.
- Enhanced Precision: GPS-guided systems ensure accurate bore paths.
- Heavy-Duty Performance: Built for challenging terrains and extended operation.
What Shall We Need to Consider When Choosing An HDD Machine?
When evaluating an HDD machine for sale, prioritize these critical features:
- Torque & Thrust Capacity: Our machines deliver industry-leading power for deep, large-diameter bores.
- Versatility: Compatible with diverse soil and rock conditions.
- Eco-Friendly Operation: Lower emissions and noise pollution align with sustainable practices.
- Remote Monitoring: Real-time diagnostics prevent downtime.
Why Choose a Horizontal Directional Drilling Machine?
A horizontal directional drilling machine is an essential asset for modern construction and utility projects. These powerful machines allow for the precise installation of pipes, conduits, and cables with minimal surface disturbance. This makes them ideal for navigating obstacles like rivers, roads, and existing infrastructure. The efficiency and versatility of a horizontal directional drilling machine translate directly into reduced project times and lower labor costs, offering a significant return on investment.
