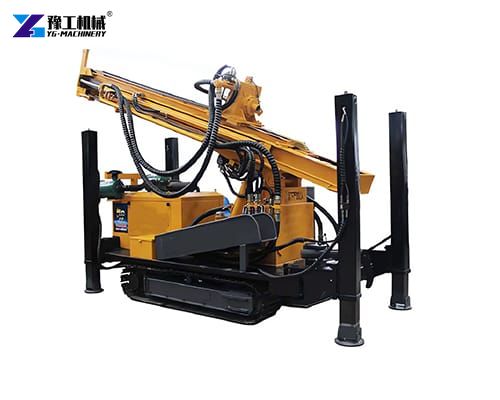

Pneumatic Drilling Rig

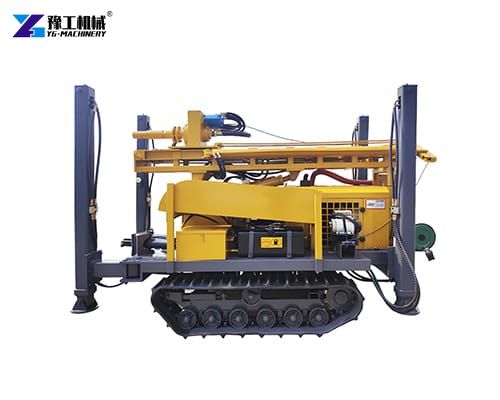

Pneumatic drilling rig is a specialized drilling system powered by compressed air. It utilizes pneumatic motors to convert air pressure into rotational force, driving drill bits into rock, concrete, or soil. These rigs are renowned for their durability, portability, and suitability for hazardous environments. Are you searching for a reliable, high-performance drilling solution that delivers exceptional power and accuracy in challenging environments? The advanced pneumatic drilling rig is a good choice. Engineered for durability, efficiency, and superior results, our rigs are the ideal choice for a wide range of applications, from mining and construction to geological exploration and water well drilling.

Pneumatic Drilling Rig Parameters

Model	YG-180	YG–200	YG–300	YG–300A	YG–400	YG–600
Drilling hole diameter	140-254mm	140-305mm	140-325mm	140-325mm	140-350mm	140-350mm
Drilling depth	180m	200m	300m	300m	400m	600m
One-time advance length	3.4m	3.4m	6.6m	3.4m	6.6m	6.6m
Walking speed	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h
Climbing angles (Max.)	30	30	30	30	30	30
Equipped capacitor	55kw	65-70kw	84kw	75.8kw	92kw	115kw
Using air pressure	1.7-2.5mpa	1.7-3.0mpa	1.7-3.3mpa	1.7-3.0mpa	1.7-3.5mpa	1.7-3.5mpa
Air consumption	17-31m³/min	17-30m³/min	17-35m³/min	17-35m³/min	17-35m³/min	17-35m³/min
Drill pipe length	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m,6.0m	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m,6.0m	1.5m, 2.0m, 3.0m,6.0m
Drill pipe diameter	76mm, 89mm	76mm, 89mm	89mm, 102mm	76mm, 89mm, 102mm	89mm,102mm,108mm	102mm,108mm,114mm
Rig lifting force	15t	12t	20t	16t	22t	28t
Swing speed	45-65rpm	45-70rpm	45–115rpm	40–70rpm	45-115rpm	45–115rpm
Swing torque	3200-4600(N.m)	3500-4800(N.m)	6200-8500(N.m)	5700-7500(N.m)	6500-9000(N.m)	8500-11000(N.m)
Dimension	380015002200mm	400017502450mm	590020002850mm	410019502600mm	590021002850mm	600022002850mm
Weight	4500kg	5800kg	9000kg	7000kg	10000kg	12000kg

Free Quote

Why Choose a Pneumatic Drilling Machine?

Exceptional Power-to-Weight Ratio: Despite their robust capabilities, pneumatic rigs are often more compact and lighter than hydraulic alternatives, making them highly portable and maneuverable, especially in remote or difficult-to-access locations.
Reliable Performance in Harsh Conditions: Designed to withstand extreme temperatures, dust, and moisture, pneumatic rigs are renowned for their ruggedness and consistent performance, minimizing downtime and maximizing productivity.
Lower Maintenance Costs: With fewer moving parts and a simpler design compared to hydraulic systems, pneumatic rigs generally require less frequent maintenance, leading to lower operating costs over their lifespan.
Versatility: Our pneumatic drilling rigs are highly adaptable and can be configured for various drilling techniques, making them suitable for a diverse array of projects.

Free Quote

Applications for Pneumatic Drilling Equipment

Mining: Blast hole drilling, exploration drilling, rock bolting.
Construction: Foundation drilling, piling, anchoring, tunneling.
Quarrying: Aggregate extraction, dimension stone quarrying.
Geotechnical Investigations: Soil sampling, core drilling.
Water Well Drilling: Creating boreholes for water extraction.
Geothermal Drilling: Installing geothermal heat pumps.
Exploration: Mineral exploration, oil and gas exploration (smaller scale).

water well drilling rigs for sale display in factory

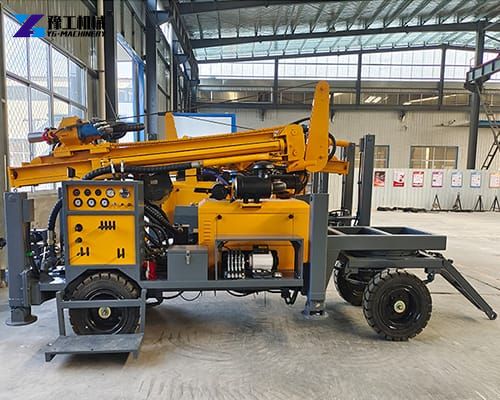

YG trailer mounted water well drilling rig for sale
