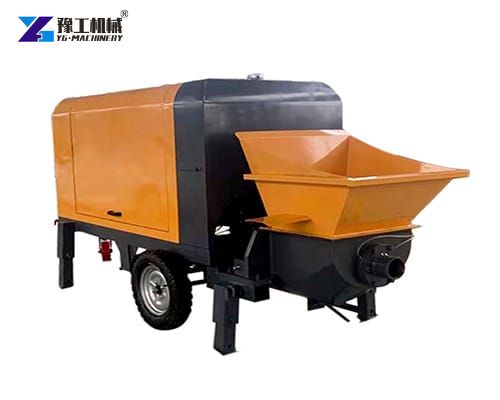

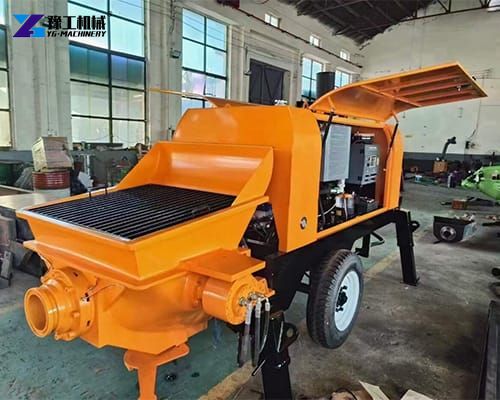

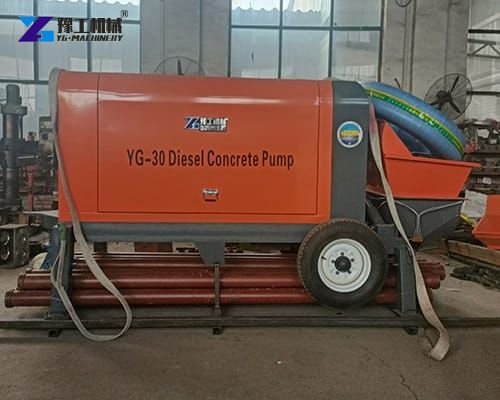

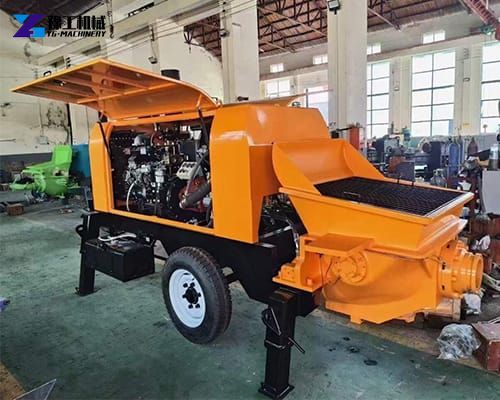

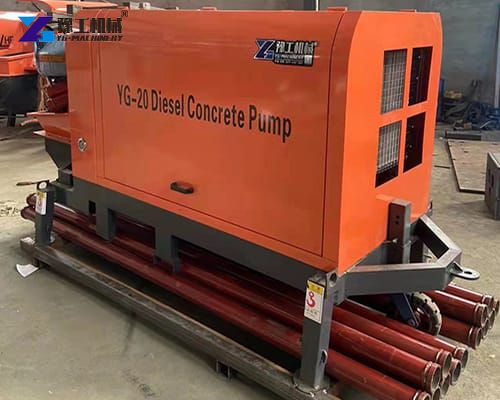

Small Concrete Pump for Sale

Small concrete pump for sale, also known as a mini concrete pump or a line pump, is a machine designed to transfer liquid concrete from a ready-mix truck to a specific location on a job site. Small concrete pumps are typically trailer-mounted and use flexible hoses or pipelines to move the material. This design makes them incredibly agile and perfect for tight spaces, residential projects, and limited costs.

Parameter of the Small Concrete Pump for Sale

Model	YG-45	YG-55	Yg-90	Yg-110	Yg-180
Transport Volume	43	54	83/49	86/51	95/61
Max pressure	10	12	13	16	20
Hydraulic system	open	open	open	open	open
Power(KW)	electric	electric	electric	electric	electric
Rotating speed	1480	1480	1480	1480	1480
Power(KW)	45	55	90	110	90*2
Distribution Valve	S valve	S valve	S valve	S valve	S valve
Cylinder Bore	200	200	200	200200	200
High/Low Voltage	No	No	No	No	No
Hydraulic Oil Tank Volume	350	460	400	450	800
Hopper Volume	0.6	0.8	0.8	0.8	0.8
Loading height	1280	1280	1380	1380	1430
Dimensions(m)	5.4*1.86*1.9	5.4*1.86*1.9	6*2.16*2.3	6*2.16*2.3	7*2.3*2.6
Total weight(KG)	4000	4500	6000	6150	7000

Components of Small Concrete Pump Machine

• Hopper: Receives freshly mixed concrete from the mixer.
• Pumping Cylinders: Push concrete through the delivery pipe.
• Hydraulic System: Powers the pumping mechanism for consistent flow.
• Pipelines and Hoses: Direct the concrete to the placement area.
• Control System: Allows the operator to adjust speed and pressure.

Features of Mini Concrete Pump

1. Power Source: Small concrete pump for sale powered by either diesel or electric motors. Diesel models are the most common due to their mobility and high power output, making them suitable for a wide range of outdoor job sites. Electric models are ideal for indoor use or projects with strict emissions regulations, as they produce no exhaust fumes.
2. Pumping Capacity: The pumping capacity is a critical specification, measured in cubic meters or cubic yards per hour. We provide various types, which are more than sufficient for most small to medium-sized projects.
3. Pumping Distance and Height: This refers to the maximum horizontal and vertical distance the pump can transport concrete. The longer the distance and greater the height, the more powerful the pump needs to be.
4. Hopper: The hopper is the large funnel-like container where the concrete is initially poured from the ready-mix truck. The size of the hopper affects how much concrete can be loaded at once, influencing the pump’s efficiency and continuous operation.

Real-World Applications

1. Residential Construction
   Pouring foundations, slabs, and pool decks.
   Backyard projects like patios or garden walls.
   Multi-story home additions requiring vertical pumping.
2. Infrastructure Repairs
   Bridge deck resurfacing.
   Tunnel lining renovations.
   Highway crack sealing and overlay work.
3. Agricultural Uses
   Barn flooring and silo bases.
   Irrigation canal lining.
   Livestock trough installation.
4. Decorative Concrete
   Stamped patios and countertops.
   Precast element manufacturing.
   Artistic concrete sculptures.

Why Choose a Small Concrete Pump for Your Business?

1. Cost-Effectiveness: Small concrete pump for sale is significantly more affordable to purchase and operate than their larger counterparts. Their lower fuel consumption and maintenance costs translate to higher profit margins on individual jobs.
2. Versatility: These pumps can be used for a wide variety of applications, from pouring concrete slabs and footings to filling concrete blocks and creating shotcrete walls. Their compact design allows them to navigate tight residential areas and confined spaces that larger pumps cannot access.
3. Increased Efficiency and Speed: A small concrete pump can move concrete much faster and with greater precision than a team of workers with wheelbarrows. This accelerates project timelines and reduces labor costs.
