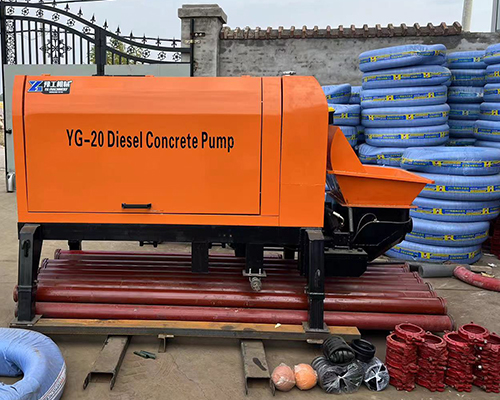

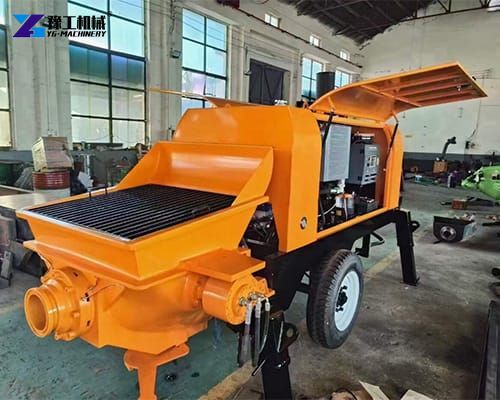

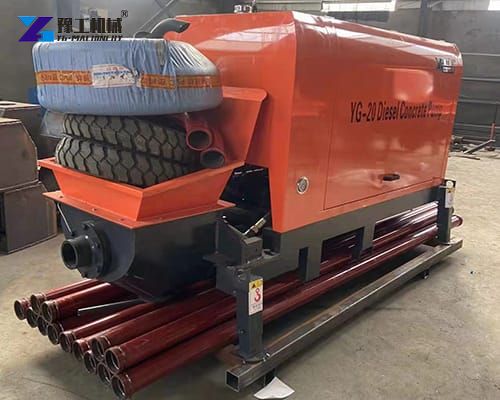

Hopper concrete pump is a compact, portable concrete pumping machine featuring a receiving hopper. Concrete is poured directly into the hopper, and the pump’s hydraulic system pushes it through delivery hoses to the placement area. It is a specialized construction machine designed to transport concrete efficiently, enabling seamless horizontal and vertical concrete delivery. This equipment is widely used in high-rise buildings, bridges, tunnels, dams, and industrial projects where traditional concrete pouring methods are impractical.
Technical Data of the Hopper Concrete Pump
| Model | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 |
| Motor Power | 22kw | 37kw | 45kw | 55kw | 90kw |
| Diesel Fuel | 4102 | 4105 | 4108 | 6102 | |
| Working Efficiency | 8-12m³/h | 13-15m³/h | 20-25m³/h | 30-35m³/h | 55-60m³/h |
| Working Pressure | 15mpa | 20mpa | 23mpa | 23mpa | 23mpa |
| Aggregate Size | 0-2cm | 0-3cm | 0-4cm | 0-4cm | 0-5cm |
| Vertical conveying distance | 40-50m | 20-60m | 30-130m | 30-150m | 30-150m |
| Horizontal conveying distance | 80-100m | 50-150m | 50-350m | 50-500m | 50-500m |
| Delivery pipe diameter | 80-100mm | 80-125mm | 80-125mm | 80-125mm | 125mm |
| Machine weight | 900kg | 1500-2000kg | 2200kg | 2200kg | 3500kg |
| Machine size | 3200*1480*1600mm | 3800*1600*1800mm | 3880*1650*1680mm | 4300*1600*1800mm | 4300*1600*1800mm |
Features of Hopper Concrete Pump
Robust Hopper Design
Built with wear-resistant steel and integrated with vibration motors to prevent concrete segregation or blockage.
Powerful Hydraulic Pumping System
High-pressure hydraulic cylinders provide consistent and efficient concrete delivery over long distances.
Easy Operation and Maintenance
User-friendly controls and accessible components simplify operation and maintenance, reducing downtime.
Various Output
Multiple output options to suit small-scale tasks or large-scale concrete placement operations.
Applications of Mini Concrete Pumps
Our hopper concrete pumps are ideal for a wide range of construction projects, including:
Residential building foundations
Tunnel and bridge construction
Road and highway infrastructure
Skyscraper and high-rise pours
Precast concrete factories
Dam and slope reinforcement
Benefits of Using YG Mobile Concrete Pump
Improved Efficiency: Continuous concrete supply reduces labor and construction time.
Reduced Wastage: Precise delivery minimizes spills and over-pours.
Labor-Saving: Fewer workers required compared to manual concrete transportation.
Versatile Usage: Handles different types of concrete mixtures and construction scenarios.
Safe and Reliable: Equipped with safety valves, pressure sensors, and emergency stop systems.
