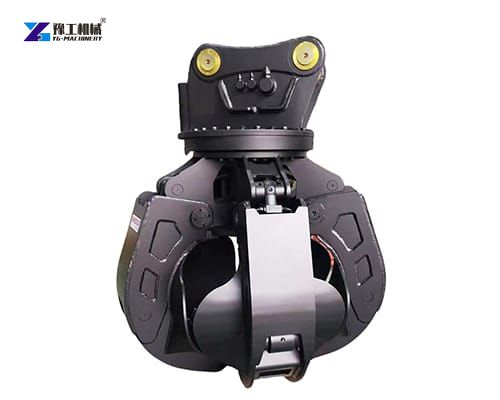

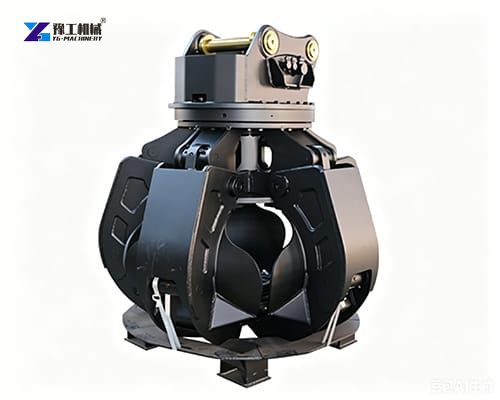

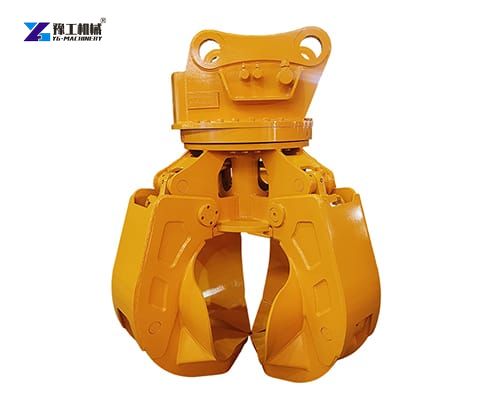

Orange peel grapple for sale is a specialized hydraulic attachment designed specifically for handling loose, irregular, and bulky materials. Its unique design resembles the fruit it is named after, featuring multiple curved jaws that converge to form a secure, spherical enclosure. This design allows the machine to grip everything from tangled scrap metal and shredded car bodies to industrial waste, municipal refuse, and large rocks. Unlike standard two-jaw buckets or sorting grapples, the multi-jaw configuration provides multiple points of contact. This ensures that even the most awkwardly shaped objects are gripped firmly from all sides.
Parameters of Orange Peel Grapple for Sale
| Model | YG-04A | YG-06A | YG-08A | YG-06B | YG-08B |
| No. of Jaw | 4/5 piece | 4/5 piece | 4/5 piece | 4/5 piece | 4/5 piece |
| Suitable Excavator | 6-9T | 10-17T | 18-25T | 10-17T | 18-25T |
| Weight | 355/420kg | 900/1000kg | 1650/1900kg | 850/1000kg | 1700/1950kg |
| Max. Opened Grapple | 1200mm | 1600mm | 2050mm | 1900mm | 2500mm |
| Height of Opened Grapple | 1000mm | 1500mm | 1700mm | 1550mm | 2000mm |
| Working pressure | 200bar | 260bar | 320bar | 260bar | 320bar |
| Working flow | 50-100lpm | 60-120lpm | 200-250lpm | 60-120lpm | 200-250lpm |
| Capacity | 0.3m³ | 0.4m³ | 0.8m³ | 0.5m³ | 1m³ |
Features That Define Premium Orange Peel Grab
First and foremost is the integration of advanced hydraulic rotation systems. A high-quality orange peel grapple for sale often features a continuous 360-degree hydraulic rotation mechanism. This capability allows the operator to position the jaws precisely over the material without having to constantly reposition the entire excavator. This saves time, reduces fuel consumption, and minimizes wear and tear on the excavator undercarriage.
Besides, top-tier grapples are built using high-strength steel alloy materials. Look for units that employ specialized wear-resistant steel plates on the interior surfaces of the tines and at the tips. The tine tips, or teeth, are subjected to extreme abrasive forces as they drag across concrete floors and grind against sharp metal fragments. Premium models feature replaceable or heavily reinforced tips to ensure the core structure remains undamaged over years of continuous service.
Core Structural Composition of the Orange Peel Grapple for Sale
The upper mounting bracket, also known as the top head assembly, serves as the connection point to the excavator arm or quick coupler system. This section uses thick forged steel plates and precision-machined pivot holes to distribute lifting stress evenly across the entire grapple frame, preventing bending or cracking under heavy load.
Many premium options include an integrated 360-degree rotary system within the upper housing, allowing operators to spin the full grapple assembly freely without repositioning the excavator, drastically improving maneuverability in tight sorting yards and shipping hold environments.
Hydraulic cylinders represent the driving force behind every jaw movement. Each curved jaw connects to its own dedicated hydraulic cylinder, synchronized through internal hydraulic tubing to ensure uniform opening and closing motion across all segments.

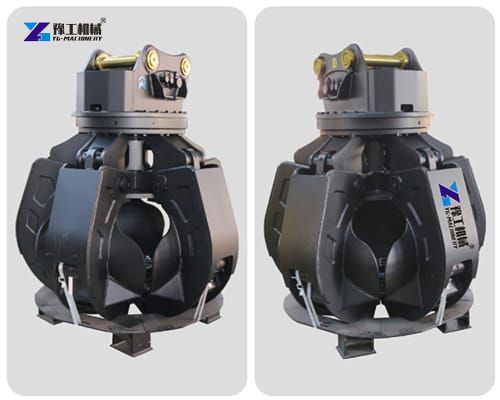

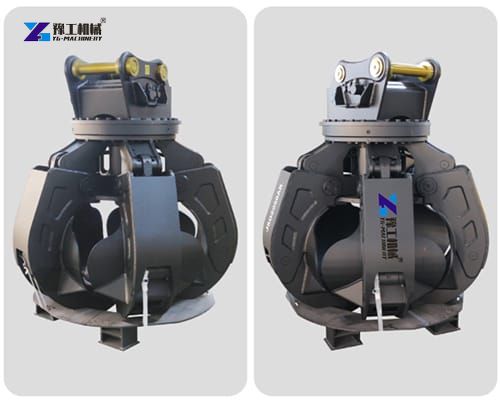

The multi-jaw grabbing shell assembly is the working face of the grapple. Most production configurations offer either four-piece or five-piece jaw setups, each with targeted use case benefits.
How Does an Excavator Orange Peel Grapple Work?
Once attached to your excavator’s quick coupler, the grapple’s hydraulic hoses are connected to the machine’s auxiliary circuit. When the operator pulls the joystick, pressurised oil enters the cylinder, extending or retracting the piston rod. This movement pushes or pulls the linkage arms, which rotate each jaw around its pivot pin. In the open position, the jaws fan out like petals, creating a wide mouth that can envelope a large pile. As the cylinder retracts, the jaws close inward, applying a gripping force that is multiplied by the lever ratio of the linkage. The maximum opening diameter is a critical spec – for example, the YG-08A model boasts a 2050mm opening, while the YG-08B goes up to 2500mm. A wider opening means you can handle bigger single pieces, such as large concrete blocks, without needing to reposition.
Why Choose the Orange Peel Grab?
First, the multiple tines (typically 4 to 6) provide superior grip distribution. With more contact points, the pressure on each tine is reduced, which means less deformation of soft materials and less chance of breaking brittle items.
Second, the spherical closure creates a basket-like shape that holds contents securely even when the machine is moving at speed or on uneven terrain.
Third, the open structure allows fine material (like dirt or small gravel) to sift out, leaving only the target load – this is a huge plus in recycling, as it reduces contaminants.
The jaws close towards a common centre point rather than just meeting along a line. This makes it easier to pick up single large objects without them slipping out sideways.
Primary Industrial Applications
- Scrap metal recycling yards stand as the largest market for the orange peel grapple for sale. Operators use them to sort mixed ferrous and non-ferrous scrap, load shredded metal into shipping containers or semi trucks, stack bundled steel, dismantle wrecked vehicles, and separate copper, aluminum, and steel materials for resale. The enclosed multi-jaw design stops small metal fragments from spilling during transfer, cutting material loss and cleanup labor costs significantly compared to alternative grapple styles.
- Demolition and construction waste management sites rely heavily on orange peel grapples to collect broken concrete, rebar, brick rubble, timber debris, and mixed construction refuse. Contractors use the attachment to clear demolished building lots, loading debris into haul trucks, and separating recyclable materials from general waste directly on site to reduce landfill tipping fees.
- Port and inland waterway material handling operations deploy these grapples inside cargo ship holds to unload bulk scrap, loose stone, timber bundles, and irregular bulk cargo. The wide maximum opening dimension and rotational capability allow efficient work in confined hold spaces with limited maneuver room for full-size excavators.
- Waste transfer stations and municipal solid waste facilities utilize orange peel grapple for sale to pile general refuse, sort recyclable paper, plastic, and cardboard, compact loose waste piles, and feed material into sorting conveyors or baler machines. Five jaw configurations excel here due to superior retention of lightweight fragmented waste materials that fall through wider spaced jaw alternatives.
- Forestry and log handling operations use mid-sized variants to stack rough-cut logs, sort uneven timber lengths, and load loose wood chip piles onto transport vehicles. While purpose-built log grapples exist, the multi-jaw orange peel design works well for mixed wood waste and irregular trunk sizes.
- Steel mill and foundry applications include handling steel slag, moving ingots, stacking raw ore piles, and managing heavy industrial byproducts generated during metal production. Heavy-weight high-capacity grapple models built for extreme abrasion and impact are standard purchases when companies seek an orange peel grapple suited for mill environment duty cycles.
- Quarry and stone yards use these attachments to sort irregular boulders, stack dimension stone, load broken rock for crushing feed, and organize oversized rubble stockpiles. The powerful clamping force easily grips uneven stone shapes.
Factors to Consider When You Search for Orange Peel Grapple For Sale
Now that you understand the specs, how do you make the final choice? Start with your excavator’s operating weight. Match it to the suitable excavators.
Also consider rotation – not all grapples come with a rotator; adding one increases cost and weight but greatly enhances precision. If you are on a budget, a fixed-position grapple can still do 80% of the work.
The number of jaws is another debate. Four-jaw grapples are lighter and faster to close, but they may leave gaps that allow small objects to escape. Five or six jaws provide a tighter grip and better load distribution.
Do not overlook the importance of the coupling system. Most modern excavators use a quick coupler, so ensure the grapple’s mounting bracket matches your coupler type. If needed, we also support the quick coupler.
