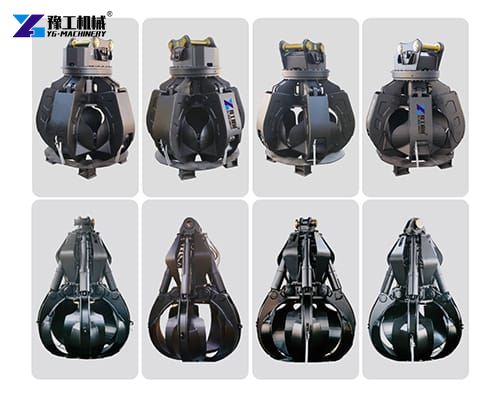

Hydraulic orange peel grab is a multi-jaw excavator attachment designed to grasp, lift, move, and release loose or irregularly shaped materials. Its name comes from the way the curved jaws open and close around a load, similar to the segments of an orange peel. Its jaws surround the material and apply gripping force from multiple directions. This makes it particularly useful when handling objects that are too large, uneven, heavy, or difficult to scoop with a standard excavator bucket. The grapple attachment is operated through the excavator’s hydraulic system. Depending on the model, the grab uses four or five pieces of jaws, providing multiple contact points for better control of irregular loads.
Hydraulic Orange Peel Grab Specifications
| Model | YG-04A | YG-06A | YG-08A | YG-06B | YG-08B |
| No. of Jaw | 4/5 piece | 4/5 piece | 4/5 piece | 4/5 piece | 4/5 piece |
| Suitable Excavator | 6-9T | 10-17T | 18-25T | 10-17T | 18-25T |
| Weight | 355/420kg | 900/1000kg | 1650/1900kg | 850/1000kg | 1700/1950kg |
| Max. Opened Grapple | 1200mm | 1600mm | 2050mm | 1900mm | 2500mm |
| Height of Opened Grapple | 1000mm | 1500mm | 1700mm | 1550mm | 2000mm |
| Working pressure | 200bar | 260bar | 320bar | 260bar | 320bar |
| Working flow | 50-100lpm | 60-120lpm | 200-250lpm | 60-120lpm | 200-250lpm |
| Capacity | 0.3m³ | 0.4m³ | 0.8m³ | 0.5m³ | 1m³ |
Find A Suitable Model for Your Projects
How Does the Excavator Orange Peel Grapple Work?
The excavator supplies pressurized hydraulic oil to the attachment. Hydraulic cylinders convert this pressure into mechanical movement, causing the jaws to open or close. When the operator closes the grab, the jaws move toward the center of the attachment and surround the material.
Once the load is securely held, the hydraulic orange peel grab can lift, rotate, transport, and position it. Opening the hydraulic circuit allows the jaws to release the material at the desired location.
The multi-jaw design provides several advantages:
- Multiple gripping points help stabilize irregular loads.
- Wide jaw openings make it easier to pick up oversized material.
- Controlled hydraulic movement allows accurate placement.
- Independent excavator operation eliminates the need for additional lifting equipment in many applications.
- Compact attachment integration allows the excavator to remain maneuverable on busy work sites.
What Materials Can an Orange Peel Grab Handle?
- Scrap metal and ferrous/non-ferrous waste – shredded cars, steel beams, copper wire bundles, and mixed demolition scrap
- Construction and demolition debris – concrete rubble, broken bricks, asphalt chunks, and rebar
- Wood and forestry products – logs, tree stumps, brush piles, and processed timber
- Recycling centre materials – electronic waste (e-waste), plastic bales, glass cullet, and municipal solid waste
- Port and shipyard cargo – coal, coke, ore, aggregates, and fertiliser
Advantages of The Hydraulic Orange Peel Grab
1. Multi-Jaw Gripping for Irregular Loads
The four- or five-piece jaw configuration creates multiple gripping points around the material. This helps stabilize uneven loads that may shift or roll when handled with conventional buckets.
2. Wide Opening for Oversized Material
Depending on the model, maximum opening ranges from 1,200 mm to 2,500 mm. The larger opening options make it easier to capture bulky loads without repeatedly repositioning the excavator.
3. Strong Capacity Options
The available models offer capacities from 0.3 m³ to 1 m³. This allows users to choose a configuration that balances handling volume with excavator size and hydraulic capability.
4. Hydraulic Operation for Precise Control
Hydraulic actuation allows the operator to control opening and closing directly from the excavator. This provides smoother handling and more accurate material placement than manual or mechanically limited solutions.
5. Broad Excavator Compatibility
The series is designed for excavators ranging from approximately 6–9 tons to 18–25 tons. This makes it possible to select a suitably sized grab for compact, medium, or larger excavators.
6. Different Working Pressure Options
The models are available with working pressures from 200 bar to 320 bar, depending on configuration. Matching the attachment’s hydraulic requirements with the excavator is important for achieving stable and efficient operation.
7. High Hydraulic Flow Capability
Depending on the model, required working flow ranges from 50–100 L/min to 200–250 L/min. This provides options for different hydraulic systems and machine sizes.
8. Efficient Material Loading
A hydraulic orange peel grab can collect several irregular pieces in one operation, helping reduce repeated bucket movements. For high-volume handling, this can improve loading efficiency and operator productivity.
9. Multiple Model Configurations
The YG series includes different combinations of jaw opening, capacity, height, weight, pressure, and flow. Users can therefore select an attachment according to the real operating environment.
10. Greater Excavator Versatility
Perhaps the biggest advantage is flexibility. With the appropriate excavator orange peel grapple, one excavator can perform more than digging and loading. It can also become a material sorting, lifting, feeding, and handling machine.
Application Scenarios of Orange Peel Grapple
Demolition Sites
After a building comes down, the site is littered with irregular rebar, concrete chunks, and mixed debris. A hydraulic orange peel grab sorts and stacks these materials faster than excavator bucket.
Scrap Metal Recycling Yards
Processing thousands of tons of shredded cars and industrial scrap demands an excavator orange peel grapple that can handle sharp edges and unbalanced loads without dropping material.
Forestry and Land Clearing
When clearing land, logs and brush piles are awkward to transport. The wide-opening models grasp entire log stacks in one scoop.
Ports and Jetties
Loading/unloading bulk cargo such as coal, ore, or scrap from ships requires rapid cycle times and reliable grip—exactly what a well-specified hydraulic orange peel grab delivers.
Waste-to-Energy Plants
Feeding mixed municipal waste into hoppers is challenging. The grapple’s multi-tine design prevents jams and ensures consistent feed rates.
Orange Peel Grapple for Sale – A Practical Attachment for Material Handling
With multi-jaw gripping, wide opening options, hydraulic control, several capacity levels, and compatibility with excavators from 6–9 tons through 18–25 tons, this range is built around practical material-handling requirements.
For businesses looking to improve loading efficiency, material sorting, and excavator versatility, the hydraulic orange peel grab is a valuable attachment solution. The right excavator orange peel grapple can help reduce repeated handling, improve load control, and make better use of equipment already available on site.
Are you looking for the right model for your excavator? Share your excavator information and the material you need to handle. Our team can help you identify the suitable configuration for your application and operating conditions.
