Integrated Rock Drill and Splitter Exported to Guatemala: A Smart Way to Tackle Hard Rock

posted in: Cases | 0

In the construction and mining sectors, efficiency isn’t just a trait—it’s a competitive advantage. For companies looking to optimize drilling, splitting, and material handling in demanding environments, an integrated rock drill and splitter offers a streamlined solution. Recently, an integrated rock drill and splitter was exported to Guatemala for a improving work efficiency and reduce time for projects. Integrated operation reduces the number of handling steps, speeding up rock work on-site. Fewer operators are needed for the combined task, with one machine performing multiple functions. Are you looking for this integrated rock drill and splitter for your projects? Contact us to learn more details.

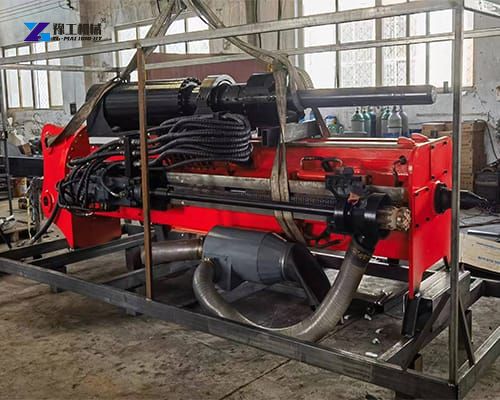

integrated rock drill and splitter to Guatemala
integrated rock drill and splitter to Guatemala

Free Quote

Specifications of the Integrated Rock Drill and Splitter to Guatemala

ModelYG-130
Suitable Excavator20T-36T Excavator
Maximum Horizontal Splitting Height9475mm
Maximum Vertical Splitting Height6715mm
Maximum Splitting Depth6705mm
Maximum Splitting Distance10225mm
Pilling Beam Length3875mm
Drilling Advanced Stroke2000mm
Maximum Drilling Thrust Force50KN
Maximum Drilling Pull Force32KN
Piling Advance Stroke1500mm
Maximum Piling Thrust Force160KN
Maximum Piling Full Force100KN
Hydraulic PressureMax. 35Mpa
Hydraulic FlowMin. 240L/min
Weight4200kg
Dimensions4210*1400*1785mm
Operation ModeRemote Control
integrated rock drill and splitter
integrated rock drill and splitter

Free Quote

What Makes the Integrated Rock Drill and Splitter Special?

  • All-in-one operation: Combines drilling and splitting functions into a single, coordinated system. This reduces downtime between steps and minimizes operator fatigue.
  • Hydraulic power and control: A robust hydraulic circuit ensures smooth drill feed and precise splitter operation under heavy loads.
  • Portability and setup speed: Compact, modular designs enable faster transport to remote sites and quicker commissioning on site.
  • Durability: Hardened components, vibration damping, and sealed hydraulics protect performance in dusty, humid tropical environments.
  • Safety and consistency: Integrated systems reduce manual handling of rock pieces and hazards associated with switching tools mid-task.
YG hydraulic rock drill and splitter
YG hydraulic rock drill and splitter
