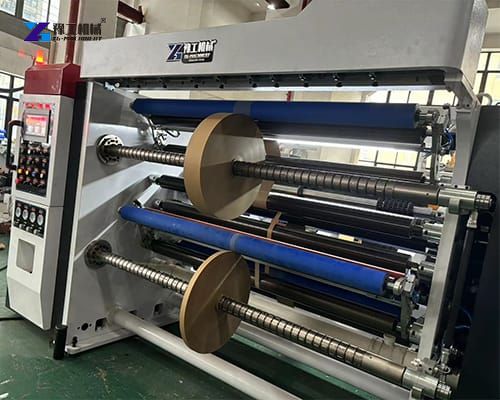

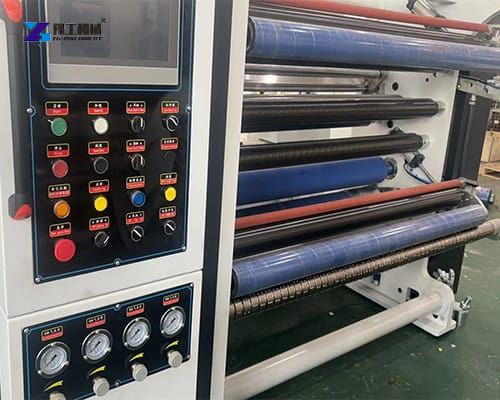

Roll to roll slitting machine is a specialised piece of equipment designed to cut wide rolls of material into narrower rolls while maintaining consistent tension and alignment. The process, known as “slitting,” is a vital step in converting raw materials into usable forms for packaging, printing, labelling, electronics, and other industries. From flexible packaging films to adhesive tapes, a roll-to-roll slitting machine provides a perfect solution for high-volume material conversion
The structure of a roll-to-roll slitting machine is a combination of precision mechanical engineering and intelligent control systems. Each part works in harmony to deliver efficient, accurate, and high-speed cutting.
Unwinding Unit The unwinding unit holds the mother roll and ensures smooth feeding of material into the slitting section. Advanced models are equipped with automatic tension control and edge guiding systems to maintain material alignment.
Slitting Section This is the heart of the machine. It includes razor blades, rotary knives, or shear slitting systems, depending on the material type and thickness. The blades are precisely adjustable to ensure clean and consistent cuts.
Rewinding Unit After slitting, the machine rewinds the narrow strips onto separate cores. Dual or turret rewinding systems are used for efficient roll changeovers and continuous production.
Tension Control System Maintaining proper tension is critical in roll-to-roll processing. Modern machines use load cells and servo motors to regulate web tension dynamically, preventing stretching or wrinkling.
Drive System Multiple servo motors control each section independently, providing smooth acceleration, deceleration, and synchronisation for consistent roll quality.
