Road line painting machines are specialized equipment designed to create clear and durable markings on roads, parking lots, airports, and other paved surfaces. These machines play a critical role in ensuring road safety, organizing traffic flow, and enhancing the visibility of pedestrian zones. It is vital for maintaining orderly traffic systems as they produce markings that guide drivers, cyclists, and pedestrians. As infrastructure development continues to expand globally, the demand for efficient and reliable road marking machines has grown significantly.
road line painting machine
thermoplastic road line marking machine
Types of Road Line Painting Machine

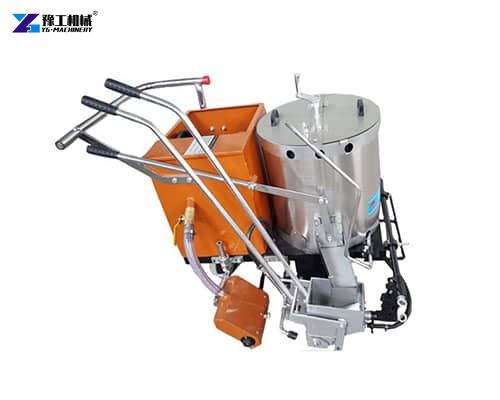

Thermoplastic Applicators Thermoplastic road line marking machines use heated thermoplastic material which melts into a liquid state before being applied to the pavement. Once cooled thermoplastic markings offer exceptional durability and reflectivity. These machines are commonly used for high-traffic areas like highways where long-lasting visibility is crucial.

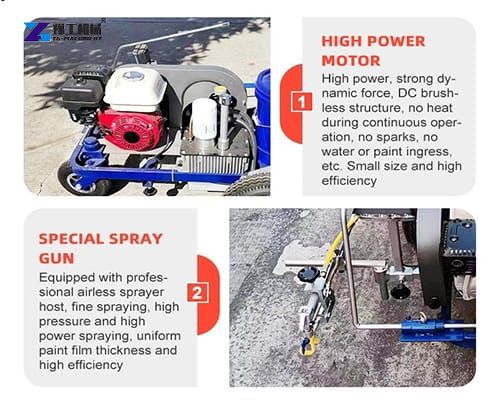

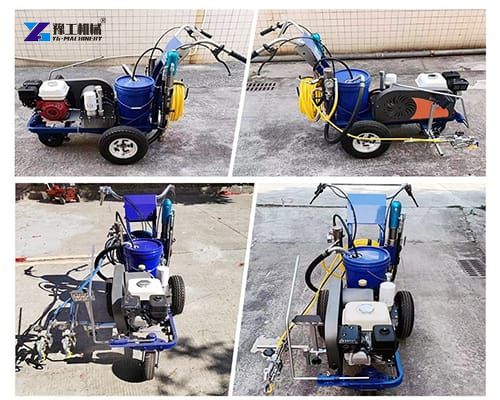

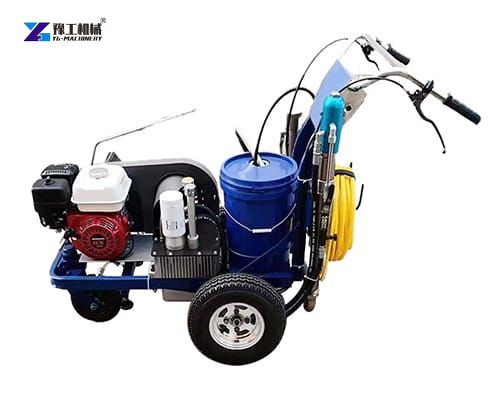

Cold Paint Sprayers Cold paint sprayers utilize unheated water-based or solvent-based paints. They are versatile and suitable for short-term markings or projects requiring frequent updates such as temporary road diversions. These machines are often paired with glass beads to enhance reflectivity.
synchronous clutch spreading, equipped with speed-adjustable gear shifting device, single/double spreading can be selected according to needs 50-200mm
synchronous clutch spreading, equipped with speed-adjustable gear shifting device, single/double spreading can be selected according to needs 50-200mm
Rear Wheel Directional Device
Ensure the machine moving in straight line or tuning freely in curved road
Ensure the machine moving in straight line or tuning freely in curved road
Brake
Using drum brake, you can adjust the brake tension
Using drum brake, you can adjust the brake tension
Marking width
Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option)
Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option)
Battery Capacity
15AH
15AH
Battery Voltage
48V lithium battery
48V lithium battery
Driver Speed
1-8km/hour
1-8km/hour
Working Duration
Machine can mark road lines24 hours after charging battery5 hours
Machine can mark road lines24 hours after charging battery5 hours
Dimensions
1210X970X1070mm
1200X970X1100mm
Net weight
130kg
150kg
Applications of Road Line Marking Paint Machine
The versatility of road line painting machines extends across diverse sectors, each with unique requirements and challenges.
Urban and Rural Roads Road line painting machines maintain lane divisions, pedestrian crossings, and bus lanes on public roads.
Highways and Motorways High-speed roads demand markings with exceptional visibility and longevity. Thermoplastic machines equipped with reflective glass beads are standard for highway projects, ensuring clear guidance during nighttime and adverse weather.
Parking Lots and Garages Cold paint machines are widely used in parking facilities due to their cost-effectiveness and ease of use. These machines apply parking bay lines and directional arrows.
Airports and Airfields Airport runways require markings that meet strict aviation standards. Specialized machines apply high-contrast, anti-skid coatings to guide aircraft safely during takeoff and landing.
Sports Courts and Playgrounds Smaller, portable road line painting machines are used to outline basketball courts, tennis courts, and playground zones. These applications prioritize precision and vibrant colors for aesthetic appeal.
