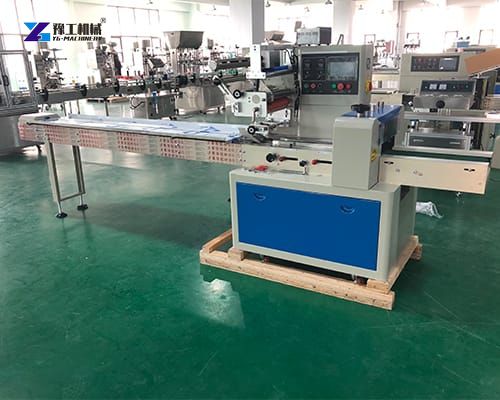

Paper Cup Packing Machine

Paper cup packing machine is a specialized automated system engineered to efficiently pack paper cups into predefined quantities, seal them, and prepare them for distribution. These machines are crucial in industries such as food service, beverage production, and retail, where high-speed packaging is non-negotiable. By automating the packaging workflow, businesses can significantly reduce manual errors, improve output consistency, and meet growing market demands.

Parameters of the Paper Cup Packing Machine

Model	YG-350X
Film width	Max. 320mm
Film roll diameter	Max.320mm
Bag length	150mm-1000mm
Bag width	50-160mm
Product height	Max.10mm-90mm
Packing rate	6-13m/min
Power	220V.50/60Hz、2.8Kw（can adjustable as local Voltage）
Machine size	L:4000*W:770*H:1450mm
Machine weight	Max. 350mm

Free Quote

Parts and Operational Workflow of Paper Cup Packing Machine

Feeding System
Cups are loaded into a hopper or conveyor belt, aligned, and transferred to the packaging zone. Advanced models feature vibration feeders or robotic arms to prevent jams and ensure smooth material flow.

Counting And Sorting Mechanism
Optical sensors or mechanical counters accurately tally cups before grouping them into predefined quantities (e.g., 50 or 100 units per pack).

Packaging Material Integration
The machine feeds plastic film, paper sleeves, or biodegradable wraps to encase the cup bundles. Environmentally conscious models prioritize sustainable materials to align with global eco-friendly trends.

Sealing And Labeling
Heat sealers or adhesive systems securely close packages, while integrated printers apply labels with barcodes, expiration dates, or branding details.

Output And Collection
Finished packs are discharged onto a conveyor or collection tray, ready for boxing and distribution.

Free Quote

What Should We Consider When Selecting A Packaging Machine for Paper Cups?

Production Capacity: Match the machine’s speed to your output requirements.
Automation Level: Semi- vs. fully automatic based on budget and labor availability.
Cup Specifications: Ensure compatibility with cup diameter, height, and material.

Advantages Of Automatic Paper Cup Packaging Machine

• Enhanced Productivity
  A paper cup packing machine processes thousands of cups per hour, far exceeding manual capabilities. This speed is vital for meeting high-volume orders, especially during peak seasons.
• Cost Savings
  Automation reduces labor expenses and minimizes errors like miscounts or improper sealing. Over time, the return on investment becomes evident through lower operational costs.
• Consistency And Quality Control
  Uniform packaging boosts brand credibility. Machines eliminate human variability, ensuring every pack meets exact size, weight, and appearance standards.
