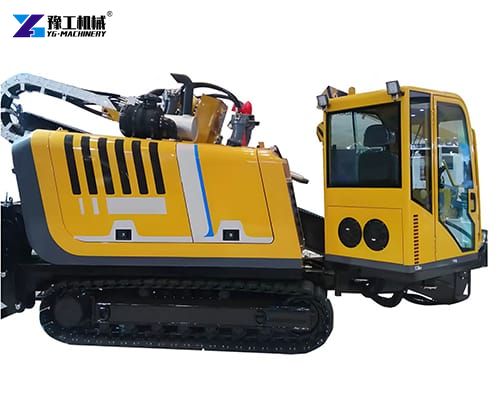

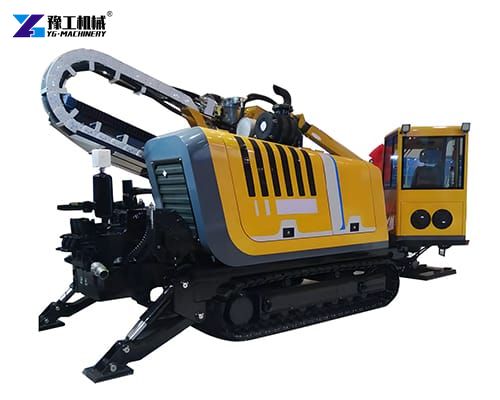

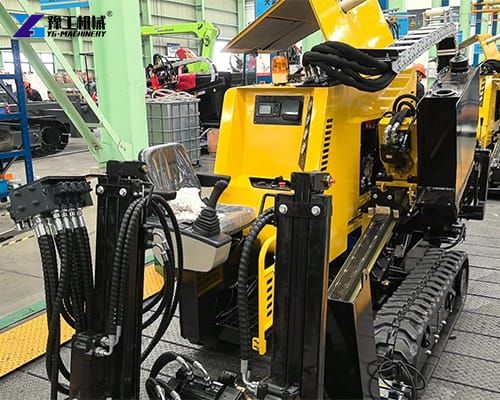

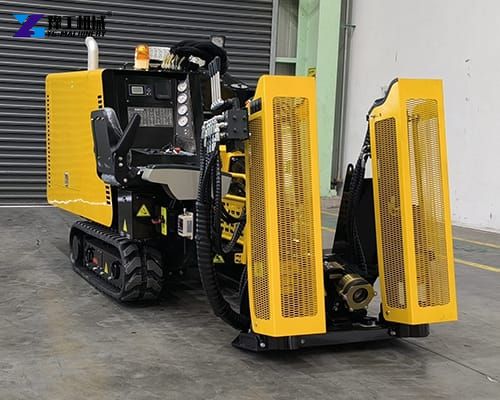

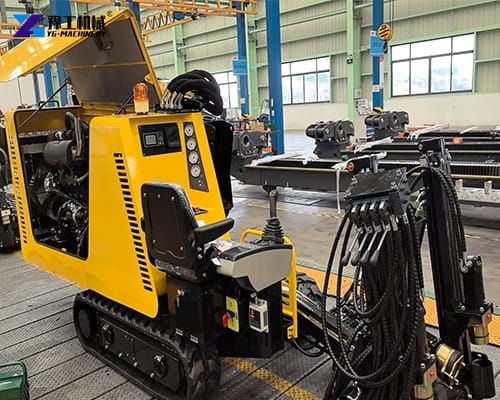

Horizontal directional drilling rig is a specialized piece of machinery engineered to drill horizontal boreholes beneath the earth’s surface. Unlike traditional vertical drilling, HDD rigs combine rotational drilling with hydraulic power to steer the drill bit along a predetermined path. This allows operators to install pipelines, cables, and other utilities without excavating large trenches, preserving landscapes, roads, and existing infrastructure. It has revolutionized the way underground utilities, pipelines, and conduits are installed across the globe. As a trenchless construction method, HDD minimizes surface disruption, reduces environmental impact, and offers unparalleled precision for projects ranging from telecommunications to oil and gas infrastructure.
Parameters of Horizontal Directional Drilling Rig
| Model | YG-50LS | YG-130LS | YG-150LS | YG-200LS |
| Weight | 3650kg | 4750kg | 4700kg | 8800kg |
| Max. Thrust & Pullback Force | 51kN | 135kN | 150kN | 205kN |
| Max. Torque | 2235N·m | 4500N·m | 4500N·m | 6500N·m |
| Engine Power | 43kw | 93kw | 93kw | 113kw |
| Walking Speed | 2.5km/h | 2.5-4.5km/h | 2.5-4.5km/h | 2.5-4km/h |
| Entry Angle | 14°-17° | 12°-22° | 12°-22° | 12°-22° |
| Drill Rod Size | φ42*1800mm | φ50/φ60*3000mm | φ60*2000mm | φ60*3000mm |
| Suggest Reaming Diameter | ≤φ400mm | ≤φ700mm | ≤φ700mm | ≤φ800mm |
| Dimension(L*W*H) | 3870*1300*1470mm | 5470*1670*2040mm | 4200*1700*2140mm | 6750*2050*2400mm |
| Max. Thrust & Pullback Speed | 61m/min | 36m/min | 46m/min | 60m/min |
| Max. Rotation Speed | 215r/min | 193r/min | 193r/min | 230r/min |
| Max. Mud Flow | 75L/min | 200L/min | 180L/min | 250L/min |
| Max. Mud Pressure | 6Mpa | 8Mpa | 8Mpa | 8Mpa |
| Max. Climbing Gradient | 17° | 16° | 17° | 17° |
| Drill Rod Box Capacity | 44pcs(4*11) | 48pcs(4*12) | 56pcs(4*14) | 48pcs(4*12) |
| Suggest Crossing Length | ≤100m | ≤200m | ≤200m | ≤300m |
Advantages Of Using HDD Machine
- Minimal Environmental Impact: Horizontal directional drilling rig preserves landscapes, reduces soil erosion, and protects sensitive ecosystems by avoiding large-scale digging.
- Cost Efficiency: Lower restoration costs, reduced labor requirements, and faster project timelines contribute to significant savings.
- Versatility: Capable of navigating challenging terrains, including rocky soils, wetlands, and congested urban areas.
Applications Of Horizontal Directional Drilling Rig
Oil and Gas: Installing pipelines under rivers, highways, and protected areas without disturbing surface activities.
- Telecommunications: Deploying fiber optic cables in densely populated urban zones with existing infrastructure.
- Water and Sewage Systems: Upgrading underground utilities without disrupting municipal services.
- Electrical Grids: Laying high-voltage power lines beneath environmentally sensitive regions.
- Renewable Energy: Facilitating geothermal loop installations and offshore wind farm cable routing.
The Horizontal Directional Drilling Process
- Pilot Bore Drilling: This initial phase involves drilling a small-diameter pilot hole along the planned trajectory. The drill head, equipped with a steering tool, is advanced into the ground. The operator uses information from the steering system to guide the drill head along the desired path, making adjustments as needed to navigate obstacles and maintain the correct alignment and depth.
- Hole Enlargement: Once the pilot bore is complete, it is often necessary to enlarge the hole to accommodate the product pipe. This is achieved through one or more passes of a reamer, a larger diameter tool that is pulled back through the pilot bore, cutting and removing more material. The size of the reamer used depends on the diameter of the product pipe to be installed.
- Product Pullback: In the final phase, the product pipe or cable is attached to the drill string at the exit point of the borehole. The horizontal directional drilling rig then pulls the drill string back, drawing the product pipe into the enlarged borehole. This requires careful management of the pullback force to avoid damaging the product.
