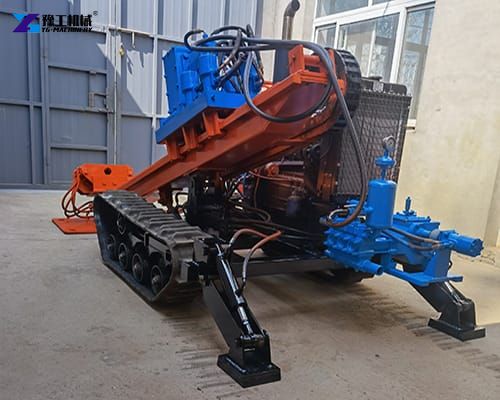

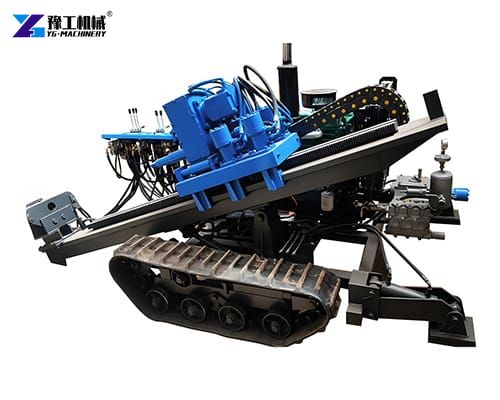

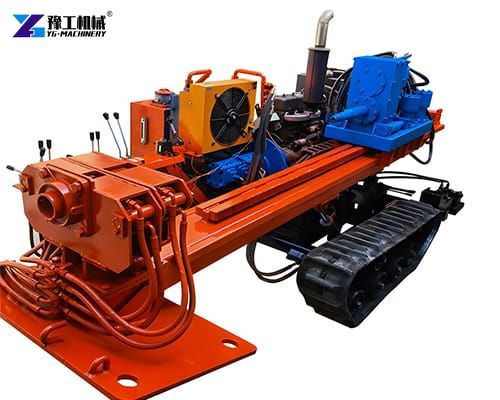

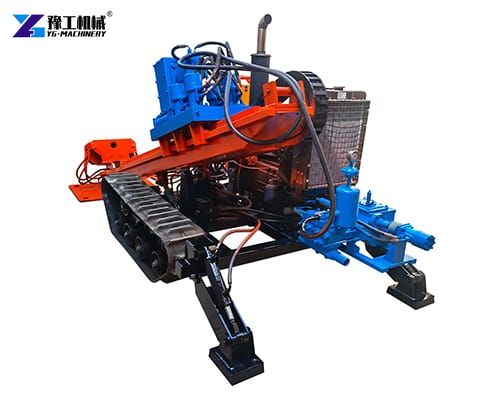

Horizontal directional drilling equipment, often abbreviated as HDD equipment, is a trenchless construction method used to install underground infrastructure without extensive excavation.This technology bores horizontal paths beneath roads, rivers, or landscapes, preserving surfaces and reducing restoration costs. YG’s horizontal directional drilling machine is designed for versatility, offering models according to soil conditions, project scale, and precision demands. In today’s world of complex underground infrastructure and sensitive environments, minimizing surface disruption is paramount. That’s where it shines, and the YG’s HDD machine is engineered to install pipelines, conduits, and cables beneath obstacles like roads, rivers, and existing structures with unparalleled precision and minimal environmental impact.
Horizontal Directional Drilling Equipment Specifications
| Model | YG-50LS | YG-130LS | YG-150LS | YG-200LS |
| Weight | 3650kg | 4750kg | 4700kg | 8800kg |
| Max. Thrust & Pullback Force | 51kN | 135kN | 150kN | 205kN |
| Max. Torque | 2235N·m | 4500N·m | 4500N·m | 6500N·m |
| Engine Power | 43kw | 93kw | 93kw | 113kw |
| Walking Speed | 2.5km/h | 2.5-4.5km/h | 2.5-4.5km/h | 2.5-4km/h |
| Entry Angle | 14°-17° | 12°-22° | 12°-22° | 12°-22° |
| Drill Rod Size | φ42*1800mm | φ50/φ60*3000mm | φ60*2000mm | φ60*3000mm |
| Suggest Reaming Diameter | ≤φ400mm | ≤φ700mm | ≤φ700mm | ≤φ800mm |
| Dimension(L*W*H) | 3870*1300*1470mm | 5470*1670*2040mm | 4200*1700*2140mm | 6750*2050*2400mm |
| Max. Thrust & Pullback Speed | 61m/min | 36m/min | 46m/min | 60m/min |
| Max. Rotation Speed | 215r/min | 193r/min | 193r/min | 230r/min |
| Max. Mud Flow | 75L/min | 200L/min | 180L/min | 250L/min |
| Max. Mud Pressure | 6Mpa | 8Mpa | 8Mpa | 8Mpa |
| Max. Climbing Gradient | 17° | 16° | 17° | 17° |
| Drill Rod Box Capacity | 44pcs(4*11) | 48pcs(4*12) | 56pcs(4*14) | 48pcs(4*12) |
| Suggest Crossing Length | ≤100m | ≤200m | ≤200m | ≤300m |
Advantages of Using HDD Machine Technology
Precision and Accuracy: HDD equipment features advanced guidance systems, ensuring bore paths align perfectly with project specifications.
Cost Efficiency: By eliminating the need for open-trench excavation, Horizontal Directional Drilling Equipment slashes labor, material, and post-installation cleanup expenses.
Environmental Friendliness: Trenchless drilling minimizes soil disturbance, protecting ecosystems and reducing carbon footprints.
Adaptability: From urban areas to rocky terrains, the HDD machine models handle diverse challenges with ease.
Features of YG Horizontal Directional Drilling Equipment
- Power & Torque Optimization: Our rigs deliver exceptional thrust, pullback, and rotational torque, enabling them to handle demanding bore paths and varying soil conditions efficiently. This raw power ensures your HDD Machine can complete the job reliably.
- Advanced Guidance Systems: Precision steering is non-negotiable. YG integrates state-of-the-art electronic tracking and guidance systems, ensuring accurate bore path execution and target accuracy, even at significant depths and distances.
- Robust Componentry & Durability: Built for the tough job sites, YG Horizontal Directional Drilling Machines feature heavy-duty frames, high-quality hydraulic systems, and wear-resistant components, guaranteeing longevity and reduced downtime.
- Operator-Centric Design: Comfortable cabs with intuitive controls, excellent visibility, and ergonomic layouts reduce operator fatigue and enhance productivity and safety during long shifts.
- Scalability & Versatility: YG offers a comprehensive range of HDD Equipment, from compact units perfect for utility installations to massive rigs capable of major pipeline projects. We have the right HDD Machine for your specific application and ground conditions.
YG: Your Partner in Advanced Trenchless Technology
In today’s world of complex underground infrastructure and sensitive environments, minimizing surface disruption is paramount. That’s where horizontal directional drilling equipment shines, and YG stands at the forefront of providing robust, reliable, and technologically advanced solutions. Our HDD machine is engineered to install pipelines, conduits, and cables beneath obstacles like roads, rivers, and existing structures with unparalleled precision and minimal environmental impact. Choosing the right HDD Equipment is critical for project success.
