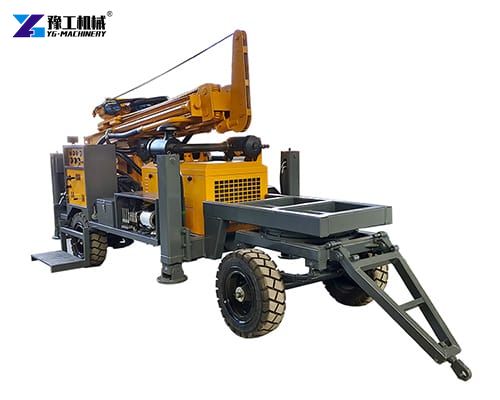

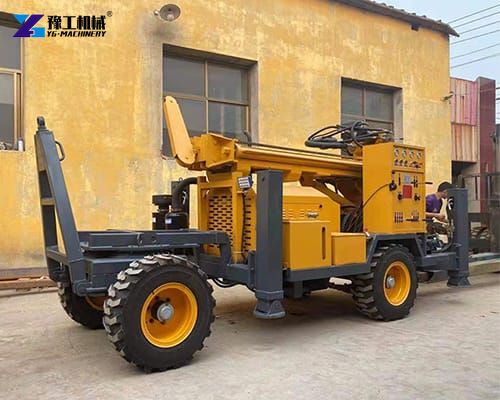

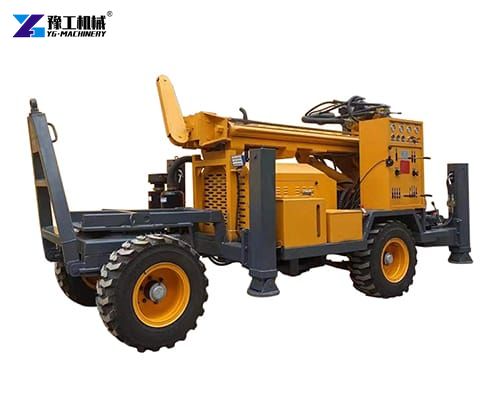

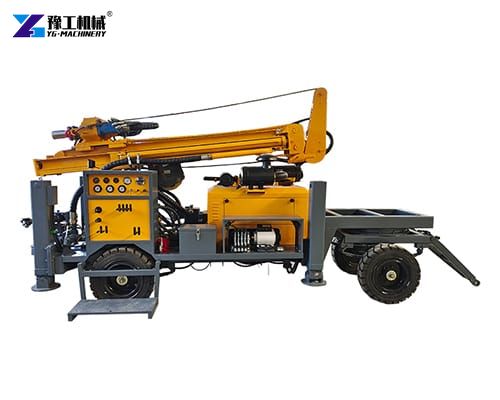

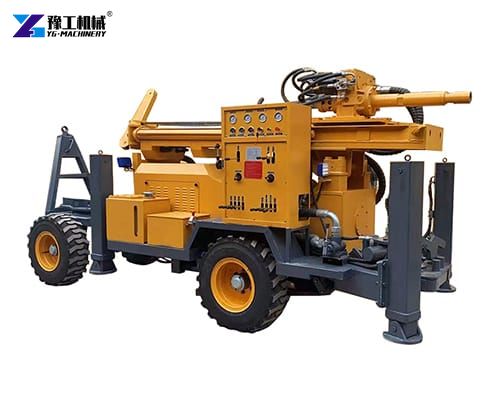

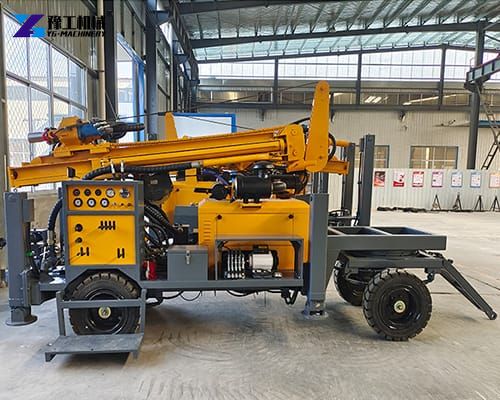

Trailer Mounted Water Well Drilling Rig

Trailer-mounted water well drilling rig is designed to bring heavy-duty drilling performance right to your job site, no matter how challenging the terrain. Its trailer-mounted structure makes the rig easier to move from one job site to another, while the strong drilling system helps it work efficiently in soil, gravel, and other common ground conditions. The product range includes different models, so customers can choose a suitable machine according to drilling depth, hole size, and project needs. The rig is built with a clear and practical layout, making daily operation easier for workers. It can be used for water well construction, farm water supply, small community projects, and other drilling jobs. For buyers looking for a balance between mobility, drilling performance, and easy operation, this machine can be a useful choice for long-term field work.

Parameters of Trailer Mounted Water Well Drilling Rig

Model	YG-180	YG–200	YG–300
Drilling hole diameter	140-254mm	140-305mm	140-325mm
Drilling depth	180m	200m	300m
One-time advance length	3.4m	3.4m	6.6m
Walking speed	2.5km/h	2.5km/h	2.5km/h
Climbing angles (Max.)	30	30	30
Equipped capacitor	55kw	65-70kw	84kw
Using air pressure	1.7-2.5mpa	1.7-3.0mpa	1.7-3.3mpa
Air consumption	17-31m³/min	17-30m³/min	17-35m³/min
Drill pipe length	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m,6.0m
Drill pipe diameter	76mm, 89mm	76mm, 89mm	89mm, 102mm
Rig lifting force	15t	12t	20t
Swing speed	45-65rpm	45-70rpm	45–115rpm
Swing torque	3200-4600(N.m)	3500-4800(N.m)	6200-8500(N.m)
Dimension	3800*1500*2200mm	4000*1750*2450mm	5900*2000*2850mm
Weight	4500kg	5800kg	9000kg

Free Quote

Characteristic of Trailer-Mounted Water Well Drilling Rig

The trailer mounted water well drilling rig has several features that make it suitable for modern drilling work.

• First, the trailer design supports convenient transportation, which is helpful for contractors who often move between different projects.
• The machine also has a strong walking and climbing ability, allowing it to work in areas where ground conditions are not perfectly flat.
• Its drilling system is designed to provide stable rotation and strong drilling force, helping the operator complete work with less unnecessary delay.
• Different models are available for different project levels, from general water well drilling to deeper and larger jobs.
• The machine also supports different drill pipe choices, giving users more flexibility when planning drilling work.
• A simple control layout can help operators learn the basic functions faster.
• With a practical structure and durable components, this trailer-mounted water well drilling rig can support continuous field work and help reduce the time spent on machine movement and preparation.

Free Quote

How Does a Trailer-Mounted Water Well Drilling Rig Work?

Trailer-mounted water well drilling rig works by using a drilling tool to break and remove soil or rock while the machine moves deeper into the ground.

• First, the operator places the rig in a stable working position and prepares the drilling area.
• The drilling system then turns the drill pipe and bit at a controlled speed.
• At the same time, compressed air can be sent through the drill pipe to help clear cuttings from the hole.
• As the bit moves downward, the drill pipe can be extended when more depth is needed.
• The operator watches the drilling conditions and adjusts the machine according to the ground.
• When the required depth is reached, the drilling tools can be removed, and the well can continue to the next construction stage.
• This working method is easy to understand and can provide a steady drilling process when the machine is operated correctly.

Free Quote

Applications of Trailer Water Drilling Machine

1. One common application is agricultural trailer mounted water well drilling rig, where farmers may need a stable water source for irrigation and livestock.
2. It can also be used for household and community water projects in areas where surface water is limited.
3. Contractors may choose this type of machine for construction sites, rural development, emergency water projects, and other field work.
4. Because the rig can be moved between locations, it is especially useful for companies that handle several drilling projects in different areas.
5. The machine can also support work in open land, farmland, and other places where a large fixed drilling system may not be convenient.

Free Quote

Advantages of Trailer-Mounted Water Well Drilling Rig

• The main advantage of the trailer-mounted water well drilling rig is its combination of mobility and drilling capability.
• A mobile machine can save time when a contractor needs to change work locations, especially when several wells must be completed in different areas.
• Another benefit is the range of available models. Customers can select a machine according to the size and difficulty of their projects.
• The drilling system is also designed to provide strong rotation and lifting performance, which can help the operator handle different stages of drilling work.
• A practical structure makes regular inspection and maintenance easier as well. For use over a longer period.
• Overall, the machine offers a useful mix of flexibility, power, and practical field performance.

Free Quote

Why Choose Us as Your Partner for Trailer Mounted Water Well Drilling Rigs?

We focus on helping customers select equipment that matches their real project needs. Our team can discuss the expected drilling depth, hole size, ground condition, working location, and transport requirements. This helps reduce the risk of choosing a machine that is too small or unnecessarily large. We can also provide guidance about drill pipes, drilling tools, air systems, and regular maintenance. Our product range includes machines for different levels of drilling work, so customers can find a practical option for farms, contractors, water supply projects, and engineering work. We pay attention to machine quality, production details, and customer communication. Our goal is to provide dependable equipment and useful service before, during, and after the sale. For specific information, please contact us freely. We look forward to discussing further models with you.
