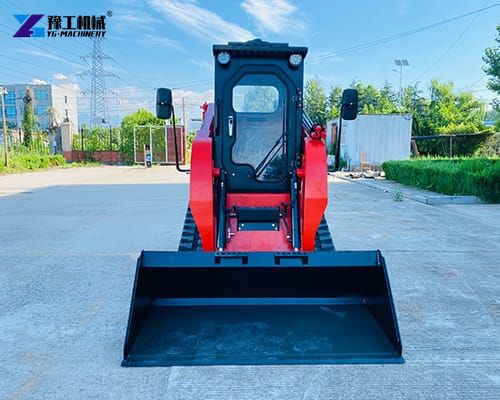

Skid steer front end loader, commonly referred to as a skid steer loader, is a small, rigid-frame machine with a lift arm and a variety of attachment options. These machines are typically used for digging, lifting, carrying, and grading tasks, making them extremely versatile for both small and large-scale operations. Unlike traditional front-end loaders, skid steer loaders use their wheels or tracks to “skid” or pivot, which allows for exceptional maneuverability in tight spaces.
Technical Data of Skid Steer Front End Loader
| Model | YGW45 | YGW65 | YGT50 | YGT65 |
| Operating load (kg) | 700 | 1050 | 700 | 1000 |
| Max Speed（km/h） | 10 | 10 | 10 | 12 |
| Rated flux (L/min) | 80 | 89 | 80 | 89 |
| Rated power (kw) | 36.7 | 55 | 45 | 55 |
| Fuel tank capacity (L) | 70 | 75 | 50 | 90 |
| Self-weight bucket (kg) | 3766 | 4498 | 4074 | 5024 |
| Bucket capacity (m³) | 0.4 | 0.5 | 0.4 | 0.5 |
| Overall operating height (mm) | 3560 | 3850 | 3660 | 3900 |
| Height to bucket hinge pin (mm) | 2765 | 3020 | 2730 | 2970 |
| Height to top of cab (mm) | 2230 | 2295 | 2349 | 2409 |
| Height to bottom of level bucket(mm) | 2909 | 2862 | 2500 | 2790 |
| Without bucket length（mm） | 2325 | 2527 | 2170 | 2450 |
| Overall length with bucket(mm) | 3276 | 3428 | 3150 | 3400 |
| Dumping angle at maximum height(° ) | 37.5 | 32 | 40 | 40 |
| Dumping height(mm) | 2342 | 2410 | 1990 | 2270 |
| Dumping reach(mm) | 550 | 850 | 1040 | 1120 |
| Rollback of bucket on ground(° ) | 20.5 | 23 | 30 | 30 |
| Rollback of bucket at full height(° ) | 96.5 | 95 | 100 | 100 |
| Wheelbase(mm) | 991 | 1074 | 1230 | 1500 |
| Ground clearance(mm) | 185 | 205 | 230 | 200 |
| Angle of departure(° ) | 20 | 20 | 18.5 | 18.5 |
| Front turning radius without bucket(mm) | 1188 | 1320.5 | 1064 | 1230 |
| Front tuning radius(mm) | 2030 | 2095 | 1825 | 2010 |
| Rear tuning radius(mm) | 1630 | 1680 | 1264 | 1720 |
| Rear axle to bumper (mm) | 929 | 1057 | 590 | 730 |
| Tread width (mm) | 1462.5 | 1498 | 1022 | 1482 |
| Width (mm) | 1726.5 | 1805 | 1422 | 1782 |
| Bucket width (mm) | 1727 | 1828 | 1727 | 1828 |
Characteristics of a Skid Steer Front End Loader
- Compact size: This allows for use in narrow spaces or areas with limited access.
- 360-degree maneuverability: The skid steer loader can pivot in place, making it ideal for working in confined areas.
- Variety of attachments: Skid steer loaders can be fitted with numerous attachments such as buckets, forks, augers, and hydraulic tools to expand their functionality.
- Powerful lifting capacity: Despite their small size, these machines offer impressive lifting capacities, making them suitable for a range of tasks, from light landscaping to heavy-duty construction.
Types of Skid Steer Front Loaders
Skid steer loaders come in different models, each designed to meet specific needs. The primary differences between these models lie in their power sources (wheeled vs. tracked), size, lifting capacity, and the type of attachments they can handle.
1. Wheeled Skid Steer Loaders
Wheeled front loader skid steer is ideal for working on hard surfaces such as concrete or asphalt. They are fast, cost-effective, and offer excellent maneuverability on stable ground. These machines are most commonly used in environments where terrain conditions are relatively flat and firm.
2. Tracked Skid Steer Loaders
Tracked skid steer front loader is designed to provide superior traction and stability on uneven terrain or in soft ground conditions. The tracks help distribute the machine’s weight evenly, preventing it from sinking into soft soils or muddy conditions. These machines are perfect for use in landscaping, forestry, and agriculture, where the ground can be unpredictable.
