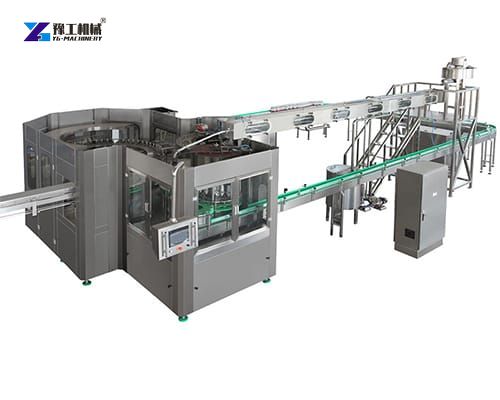

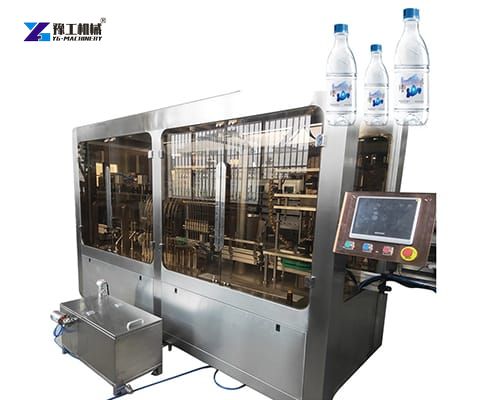

Mineral Water Filling Machine

Mineral water filling machine automates the process of filling, capping, and labeling bottles. Designed for high-volume production, these systems minimize human intervention, reduce contamination risks, and maintain consistent quality. They handle various bottle sizes and materials, making them indispensable for bottling plants, beverage companies, and startups.

Specifications of the Mineral Water Filling Machine

Project Name: Full Automatic Complete Mineral Water 1000-8000bph Production Line				PH≥4.6 Drinking water
Material	Shape	Filling volume(ml)	Filling level(mm)	Neck type
PET Bottle	Square or Round Bottle	3000-10000ml	Distance from the bottleneck According to the request	As request
Adjustable specifications of the bottle type	Middle Mould Base: Bottle diameter ≤105mm, Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then a bottle-separating system will be added.
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual  /  Automatic		Packing system	Min, Spec.	Manual Low-position gantry palletizer Robot Palletizer High-position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around Packer Robert Packing Machine	1*2 2*3 3*4 4*6 3*5
User Ambient Conditions:		Temperature:10~40ºC; Humidity: No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Free Quote

Components of Water Bottle Filling Equipment

• Bottle Unscrambler: Aligns bottles for filling.
• Filling Nozzles: Precision pumps for accurate liquid measurement.
• Capping Unit: Secures caps via screw-on or press-fit mechanisms.
• Conveyor Belt: Transports bottles between stations.
• PLC Control Panel: Allows customization of speed, volume, and diagnostics.

Free Quote

Benefits of Investing in a Mineral Water Bottling Machine

1. Enhanced Productivity: Automating tasks boosts output by 70% compared to manual processes.
2. Hygiene Assurance: Reduces human contact
3. Cost Savings: Cuts labor costs by 50% and minimizes water waste.
4. Scalability: Upgrade modules (e.g., additional nozzles) as demand grows.
5. Sustainability: Energy-efficient motors and recyclable material handling reduce carbon footprints.

Free Quote

How Does a Mineral Water Filling Machine Work?

The working principle follows a linear or rotary path, depending on the machine design. For high speed production, rotary systems are the gold standard.

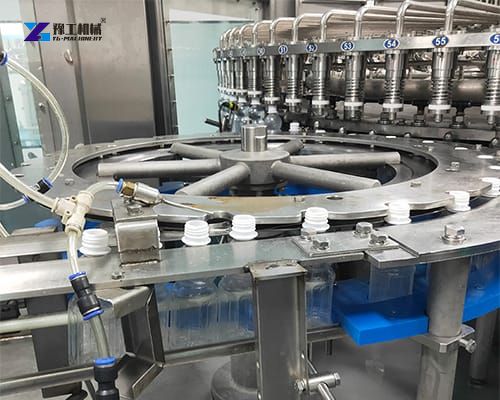

• First, empty bottles enter the machine via an air conveyor system. The air conveyor uses high pressure fans to slide the bottles along a rail, which prevents surface scratches. Once inside, the bottles are picked up by the rinsing grippers. After being thoroughly washed, they move to the filling zone.

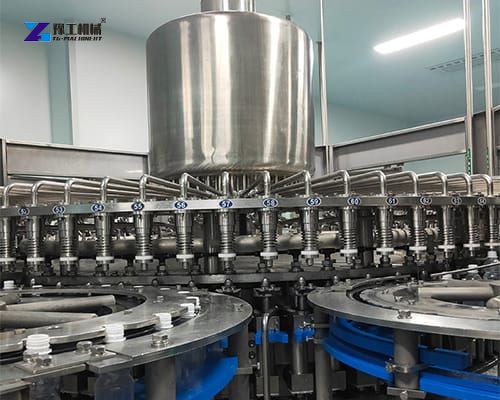

• At the filling station, the bottle creates a seal with the filling valve. The valve opens, and gravity allows the mineral water to flow into the bottle. The displaced air is exhausted through a vent tube. Once the liquid reaches the desired level, the valve closes.
• Finally, the filled bottle moves to the capping station. A cap is picked up from the chute and placed onto the bottle. The capping head spins the cap down with a specific amount of force. The finished product then exits the machine onto a flat conveyor, ready for labeling and packaging.

How to Choose the Right Mineral Water Filling Machine?

Selecting the right machine requires careful consideration of several factors.

1. Production Capacity: Determine how many bottles you need to produce per hour. Choose a machine with a capacity that matches your current needs but leaves room for future growth.
2. Bottle Type and Size: Make sure the machine is compatible with the bottles you plan to use. If you want flexibility, opt for a model with quick-changeover parts.
3. Budget: Prices range from basic semi-automatic units to fully automatic high-speed lines. Set a realistic budget and prioritize features that matter most for your operation.
