Mineral Water Bottle Filling Machine

Mineral water bottle filling machine is an automated system designed to fill purified water into bottles, ensuring proper sealing and labeling. These machines operate at various speeds, ranging from small-scale units to high-capacity automatic production lines. The right choice depends on factors such as production volume, bottle sizes, and budget.

Technical Data of the Mineral Water Bottle Filling Machine

Project Name: Full Automatic Complete Mineral Water 1000-8000bph Production Line				PH≥4.6 Drinking water
Material	Shape	Filling volume(ml)	Filling level(mm)	Neck type
PET Bottle	Square or Round Bottle	3000-10000ml	Distance from the bottleneck According to the request	As request
Adjustable specifications of the bottle type	Middle Mould Base: Bottle diameter ≤105mm, Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then a bottle-separating system will be added.
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual  /  Automatic		Packing system	Min, Spec.	Manual Low-position gantry palletizer Robot Palletizer High-position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around Packer Robert Packing Machine	1*2 2*3 3*4 4*6 3*5
User Ambient Conditions:		Temperature:10~40ºC; Humidity: No dew
User Electrical Supply Specification		Customers need to buy additional changeover parts for the different bottles. If using square bottles, then a bottle-separating system will be added.

Free Quote

Parts of a Water Bottle Filling Process

High quality mineral water bottle filling machine consists of several essential components that contribute to its efficiency:

1. Water Filtration and Purification System: Before filling bottles, water undergoes purification processes such as reverse osmosis (RO), UV sterilization, and ozone treatment to ensure it meets health and safety standards.
2. Bottle Unscramble: This component organizes empty bottles in a consistent orientation before they move to the filling station.

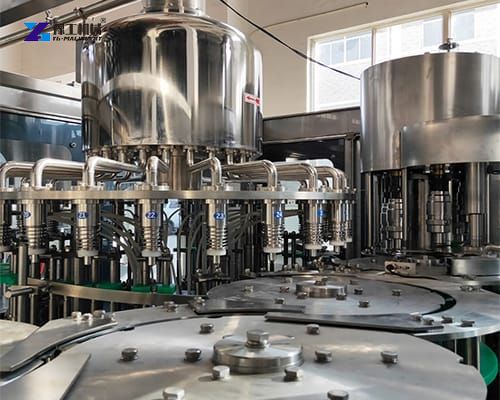

3. Filling System

• Filling mechanisms vary based on technology:
• Gravity Filling: Uses gravity for precise filling
• Vacuum Filling: Ensures accurate volume control
• Pressure Filling: Ideal for carbonated water

4. Capping Unit: Capping machines ensure airtight sealing using screw caps, snap caps, or press caps.

5. Labeling and Packaging System: Once bottles are filled and capped, they move to the labeling station where branding and regulatory information are applied.

Free Quote

Factors to Consider When Choosing a Bottle Water Filling Machine

1. Production Capacity

• Small-scale businesses: 500-1000 bottles per hour
• Medium-sized operations: 2000-5000 bottles per hour
• Large-scale industries: 10,000+ bottles per hour

2. Automation Level: Consider whether a manual, semi-automatic, or fully automatic system suits your business needs and budget.

3. Bottle Size Compatibility: Ensure the machine supports multiple bottle sizes (e.g., 250ml, 500ml, 1L, 2L) if you plan to diversify your product range.

4. Material and Build Quality

• Stainless steel construction (preferably SS304 or SS316) for corrosion resistance and durability
• Food-grade materials for compliance with hygiene standards
