Egg tray production line stands as a pulp molding solution designed to transform waste paper materials into sturdy, protective egg packaging trays for poultry farms, egg distributors, and food packaging enterprises across global markets. While primarily utilized for manufacturing egg protectors, these versatile lines are capable of producing fruit trays, electrical product buffers, cup holders, and custom industrial packaging components. By utilizing water and recycled paper as its primary inputs, the machinery operates on a closed-loop principle, ensuring that the entire manufacturing sequence minimizes carbon footprints while maximizing resource efficiency.
Egg Tray Production Machine Specifications

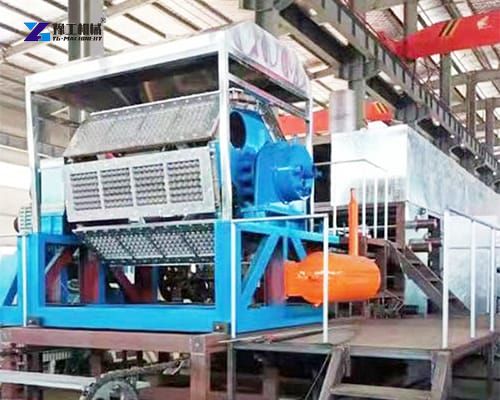

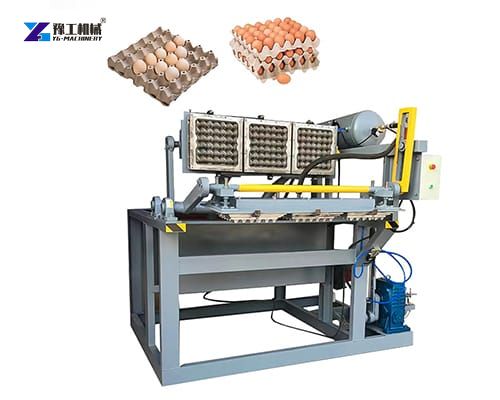

| Model | YG-1000-3X1 | YG-1500-4X1 | YG-2500-3X4 | YG-3000-4X4 | YG-4000-4X8 | YG-5000-5X8 | YG-7000-6X8 |
| Capacity | 1000pcs/h | 1500pcs/h | 2500pcs/h | 3000pcs/h | 4000pcs/h | 5000pcs/h | 7000pcs/h |
| Power | 38kw/hour | 38kw/hour | 55kw/hour | 60kw/hour | 95kw/hour | 95kw/hour | 120kw/hour |
| Voltage | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ |
| Weight | 2500kg | 3000kg | 4000kg | 4800kg | 7000kg | 8000kg | 10000kg |
| Dimensions (main machine) | 2600*2200*1900mm | 2800*2200*1900mm | 2900*1800*1800mm | 3250*1800*1800mm | 3250*2300*2500mm | 3700*2300*2500mm | 3200*2300*2500mm |
| Paper consumption | 80kg/hour | 120kg/hour | 200kg/hour | 240kg/hour | 320kg/hour | 400kg/hour | 480kg/hour |
| Water consumption | 160kg/hour | 240kg/hour | 400kg/hour | 480kg/hour | 640kg/hour | 800kg/hour | 960kg/hour |
| Drying | dry naturally | dry naturally | multi-layer drying | multi-layer drying | multi-layer drying | multi-layer drying | multi-layer drying |
Working Principle of the Egg Tray Making Line
The foundational concept behind the egg tray production line relies on wet pulp forming technology. Waste cardboard, newspaper, office scrap paper, and carton offcuts undergo a controlled pulping process, where water breaks down paper fibers into a homogeneous slurry mixture. This slurry then fills custom-shaped molds that mirror the standard indentations needed to cradle individual eggs. After forming, newly molded egg trays move through drying systems to remove excess moisture, yielding rigid, shock-absorbent trays ready for packaging and shipment to egg suppliers. The adaptability of the egg tray production line extends far beyond basic egg carton creation too, with adjustable molds capable of producing fruit packaging, bottle holders, and disposable food containers with minimal equipment modification.

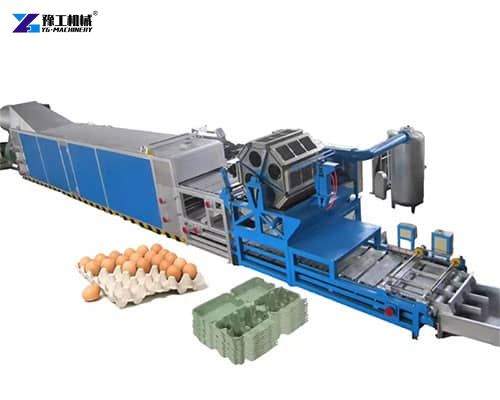

Comprehensive Structural Layout of The Assembly Line
An egg tray production line is divided into three primary engineering sectors, each responsible for a distinct phase of material transformation.
- The first sector is the pulping system. This area features a high-consistency hydrapulping tank, pulp storage reservoirs, agitation mechanisms, and refinement pumps. Here, raw waste paper is subjected to intense forces, breaking down interlocking cellulose fibers into a homogeneous liquid suspension. Chemical additives, such as water-resistant agents and color pigments, are introduced at this stage to enhance the structural properties of the final product.
- The second sector is the molding system, which serves as the mechanical core of the entire operation. This system consists of rotating, flipping or reciprocating forming platens equipped with precision-engineered suction molds and corresponding transfer molds. A powerful vacuum mechanism draws the prepared pulp suspension against the fine mesh screens of the forming molds, instantly creating the wet product shape while extracting the majority of the water content.
- The third sector encompasses the drying system. Depending on the scale of operation, this can range from open-air natural drying zones, drying ovens, to highly automated multi-layer conveyor ovens. The drying tunnel uses natural gas, diesel, coal, or electricity to generate the intense thermal energy needed to evaporate residual moisture from the molded shapes without causing structural warping or thermal cracking.
Comparative Analysis: Natural Drying Versus Multi-Layer Industrial Ovens
A key decision when designing a production facility is choosing between a natural ambient drying setup and an automated multi-layer conveyor oven. This choice affects initial capital expenditures, land requirements, labor costs, and overall operational scalability. Natural drying relies entirely on solar radiation and local wind currents. Wet trays are manually placed on lightweight racks and wheeled into open-air drying yards. This approach dramatically reduces initial capital investment and eliminates fuel costs for drying. However, this method requires a large amount of land and leaves production vulnerable to sudden rain, high humidity, and seasonal changes. It also increases labor costs due to the constant manual handling of the wet trays.
Conversely, automated multi-layer drying tunnels offer a controlled, independent manufacturing environment. These systems stack six to eight conveyor tiers vertically inside an insulated thermal enclosure, keeping the total floor footprint remarkably small. The wet trays move smoothly through automated zones heated by highly efficient burners. This setup guarantees consistent product dryness and quality regardless of outdoor weather conditions, while significantly reducing labor costs through automated handling. While the initial capital cost and fuel consumption are higher, the dramatic increase in operational efficiency, predictability, and output makes multi-layer ovens the preferred choice for industrial installations.
Significance of the Egg Tray Manufacturing Line
The egg tray production line is a highly effective combination of environmental sustainability, mechanical reliability, and commercial profitability. By transforming simple waste paper into essential protective packaging, this technology provides a practical solution to the global challenge of plastic waste reduction. Whether launching a localized green business with a naturally dried system or establishing a high-capacity industrial manufacturing facility with an automated multi-layer oven, the versatility and efficiency of pulp molding technology ensure long-term operational success. With high technical configurations and durable structural engineering, we have developed with lots of clients from different countries. If you are looking for an egg tray production line solution, do not hesitate to learn more details.
