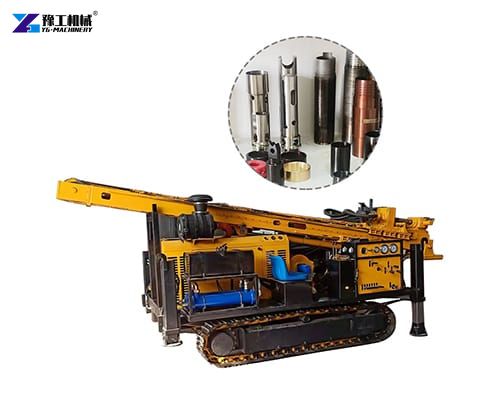

Core drilling machine for mining is a rig or device designed to extract cylindrical rock samples, often called cores, from subsurface rock formations in exploration or mining operations. These machines are engineered to penetrate hard rock, retrieving intact sections of geological formations so that geologists, mining engineers, and other professionals can analyse the structure, mineralogy, and grade of the deposit. The technique often uses diamond-bit or other specialized coring tools to ensure the integrity of the core sample.
Parameters of the Core Drilling Machine for Mining
| Model | YG-130 | YG-180 | YG-200 |
| Drilling depth (m) | 130 | 180 | 200 |
| Hole diameter(mm) | 220 | 220 | 325 |
| Final hole diameter(mm) | 75 | 75 | 75 |
| Drill pipe diameter (mm) | 42-60 | 42-60 | 42-60 |
| Drilling angle (°) | 90-75 | 90-75 | 90-75 |
| Supporting power（kW） | 13.2=24P | 13.2=24P | 14.7 |
| Weight(kg) | 920 | 955 | 1150 |
| Size(mm) | 2400*950*1400 | 2400*950*1400 | 2700*950*1770 |
Main Components of Core Drilling Machine
- Drill Head
The drill head transmits torque and rotation to the drill string. It determines the drilling speed and penetration efficiency. - Drill Rods and Core Barrel
These components connect the drill bit to the drill head and hold the extracted core samples. The rods are made of high-strength steel to withstand immense torsional stress. - Drill Bit
Often made of diamond or tungsten carbide, the bit cuts through rock formations with precision and durability. - Control Panel
Core drilling machines for mining feature digital control systems that allow operators to adjust drilling speed, pressure, and rotation to suit varying geological conditions. - Cooling And Lubrication System
A fluid system circulates drilling mud or water to cool the bit, reduce friction, and remove rock cuttings. - Base And Frame
A strong, stable foundation supports the entire system, minimizing vibration and ensuring steady operation even in harsh terrains.
Applications In The Mining Industry
The core drilling machine for mining plays a critical role in several mining stages:
- Exploration Drilling: Identifying mineral-rich zones and understanding geological structures.
- Resource Evaluation: Determining the size, shape, and grade of ore bodies.
- Geotechnical Investigation: Assessing ground stability for safe mine design.
- Blast Hole Preparation: In some operations, core drills are adapted for blasting layouts.
- Environmental Monitoring: Drilling boreholes for groundwater and contamination studies.
Advantages Of Core Drilling Machines
Using a core drilling machine for mining offers numerous benefits over other drilling methods:
- Accurate Geological Sampling: Produces continuous, undisturbed cores essential for reliable analysis.
- Cost Efficiency: Reduces material waste and drilling time through precision control.
- Versatility: Suitable for various terrains, from soft sediments to hard crystalline rocks.
- Safety and Automation: Advanced control systems minimize human error and exposure to hazards.
- Long-Term Reliability: Built to endure extreme conditions with minimal downtime.
