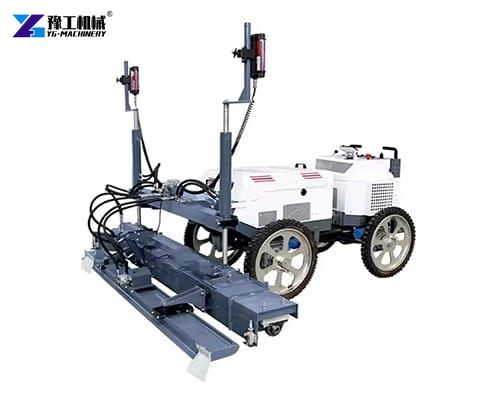

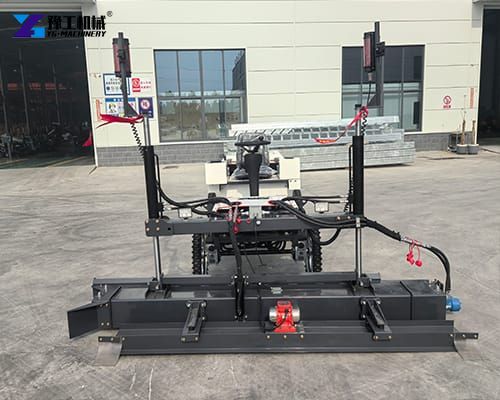

Concrete laser screed for sale is professional equipment that uses laser technology to level concrete floors. The laser concrete leveling machine mainly consists of hydraulic systems, electronic control systems, scraper devices, and laser monitoring systems. Its laser technology can control the height and flatness of the mechanical scraper to ensure that the flatness and levelness of the concrete floor meet the design requirements. Laser concrete screed machines are mainly applied in the construction of large-area concrete floors, such as parking lots, airport runways, large warehouses, etc. It has the advantages of improving working efficiency, leveling the ground, and improving construction ground quality. More details please get in touch with us freely.

concrete laser screed for sale
concrete laser screed for sale
laser concrete leveling machine
laser concrete leveling machine

Concrete Laser Screed Machine Specifications

ModelYG-CL300YG-CL300AYG-ZP30YG-ZP40
Engine modelBriggs & Stratton 38E3/LONCIN/Honda 690 (optional)Briggs & Stratton 38E3/LONCIN/Honda 690 (optional)Yanmar 4TNV94LYanmar 4TNV98L
Engine typeGasoline, air-cooled 4-stroke, twin-cylinder engineGasoline, air-cooled 4-stroke, twin-cylinder engineDieselDiesel
Engine power22KW/30ps22.8KW/23ps/31ps35.5KW/48hp63.9KW/86hp
Fuel tank volume20L (operation time is about 8 hours20L (operation time is about 8 hours100L140L
Hydraulic oil volume37L35L150L200L
Laser transmitterSwiss Leica/Tower transmitter (optional)Swiss Leica/Tower transmitter (optional)American TempoAmerican Tempo
Laser receiverSwiss Leica/Tower receiver (optional)Swiss Leica/Tower receiver (optional)German MoparGerman Mopar
Laser system control effectPlane, slope, double slope
(three-dimensional)		Plane, slope, double slope
(three-dimensional)		Flat, inclined or double slope (3D)Flat, inclined or double slope (3D)
Laser system control methodMicrocomputer laser scanningMicrocomputer laser scanningMicrocomputer laser scanningMicrocomputer laser scanning
Paving methodHydraulic stirring cage pavingHydraulic stirring cage pavingHydraulic Cage PavingHydraulic Cage Paving
Vibration plate width2500mm3000mm3100mm4000mm
Leveling thickness50-300mm60-300mm100-450mm100-500mm
Walking drive formReducer motor integratedReducer motor integratedHydraulic four-wheel drive
Outrigger		Hydraulic four-wheel drive
Outrigger
Working speed0-4Km/h (speed adjustable)0-4Km/h (speed adjustable)4-8km/h 24m/min4-8km/h 24m2/min
Walking tiresSolid anti-skid and anti-puncture tires (optional wide tires)Solid anti-skid and anti-puncture tires (optional wide tires)Front wheel + four wheels + crab walkFront wheel + four wheels + crab walk
Body size3250x2850x1320mm3300x3460x1650mm5350x3650x2040mm5495x4555x2630mm
Weight900kg1000kg5500 kg8500 kg
Vibration method/excitation forceHydraulic vibration/2000NHydraulic vibration/2000N//
Hydraulic system//DanfossDanfoss
Auger power//Hydraulic motorHydraulic motor
Steering method//One-touch four-leg self-levelingOne-touch four-leg self-leveling
Cleaning machine flow//15L/min15L/min
Advantages of Jiaobanlong//Flip up and down for easy cleaning, left and right switching, blades made of highly wear-resistant material, more durableFlip up and down for easy cleaning, left and right switching, blades made of highly wear-resistant material, more durable
Reach length//6000mm6000mm

Free Quote

Main Features of Laser Concrete Screed Machine

  1. The laser screed machine can be used for concrete basements, factories, workshops, warehouses, parking lots, logistics park ground construction, and is not suitable for asphalt roads, fields, and land roads
  2. High-frequency vibration, step-less speed change, precise construction, 3D leveling, and fast construction
  3. Drive-in concrete laser screed for sale is available for large construction projects.
  4. The control panel is easy to operate, with refined construction data and clear observation.
concrete laser screed machine for sale
concrete laser screed machine for sale
laser concrete screed machine for sale
laser concrete screed machine for sale

Wide Applications of Concrete Laser Screed for Sale

  1. Road construction for road surface leveling, smoothing, maintenance, and flatness
  2. Airport runway construction to improve the flatness and finish of the runway
  3. Floor construction of various industrial plants to ensure that the floor surface is flat
  4. Level the floor of warehouses and logistics centers
