Slipform Kerb Machine Sold to Iceland

posted in: Cases | 0

Slipform kerb machine for sale is a kind of equipment for building road curbs, shoulders, and middle dividers. We just sold a set of slipform kerb machine to Iceland. There are different types of slip-form paver machines with different specifications. To choose the most suitable machine for our customers, we confirmed a great deal of details for his requirements and use places. According to these, we recommend him the proper machine that can meet his diamond. Finally, he bought it. It’s our pleasure for people’s choices. We prepared the machine as soon as possible after receiving this payment so that our customer could get it early. Are you looking for this machine? Welcome to contact us for free quotation and detailed information.

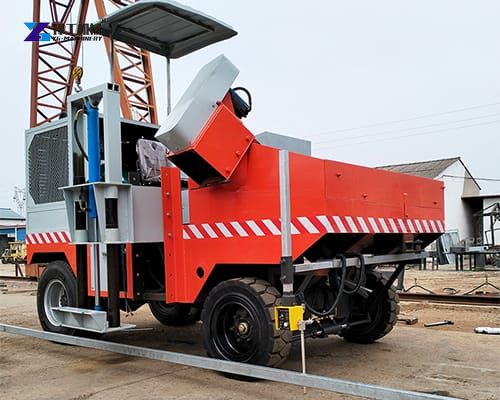

slipform kerb machine sold to Iceland
slipform kerb machine sold to Iceland

Free Quote

Slipform Kerb Machine for Sale

The slipform kerb machine sold to Iceland is suitable for plastic concrete and dry hard concrete for various highways, one-time formation. It uses the slip form process to pour concrete into the mold. After vibration and compaction, the desired kerb shape is formed in the mold. This equipment is usually composed of components such as motors, vibration systems, hydraulic systems, and control systems. It can efficiently produce curbs of various specifications and shapes and improve construction efficiency. The curb slip form machine is widely used in the construction of roads, sidewalks, squares, and other places.

slipform kerb machine working on site
slipform kerb machine working on site

Free Quote

Slipform Kerb Machine Specifications

ModelYG-20YG-30
TypePortable wheel typeCrawler portable
Steering systemAutomatic steering systemAutomatic steering system
Engine65kw, AC380V four-cylinder turbo diesel engine65kw
Rated speed1500rpm
Curb sizeHeight≤600mm,width≤2000mmHeight≤1100mm,width≤2000mm
Forming methodhigh-frequency vibrator. Attached vibration motor
Minimum turning radius6800mm6800mm
Paving speed1—7m/min adjustable1—10m/min
Hopper volume1m³1m³
Machine size5000*2400*2800mm5200*2400*2800mm
Weight6000kg7000kg

Free Quote

Working Principle of Curb Slip Form Machine

A spiral blade is installed in front of the forming mold. The blade rotates continuously to push the cement concrete into the forming mold. A vibrating rod is installed in front of the forming mold for the extruded curb. The high-frequency vibration of the vibrating rod makes the cement concrete reach a certain density. The slipform curb machine moves forward, relying on its power.

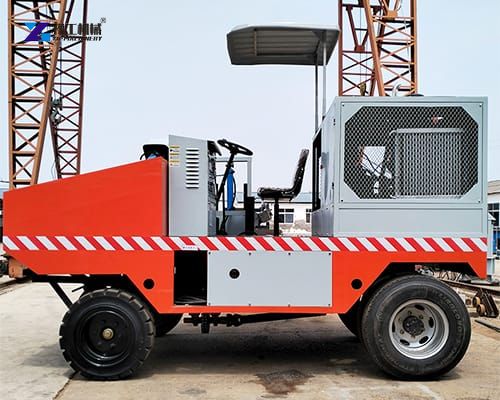

YG slipform kerb machine for sale
YG slipform kerb machine for sale
