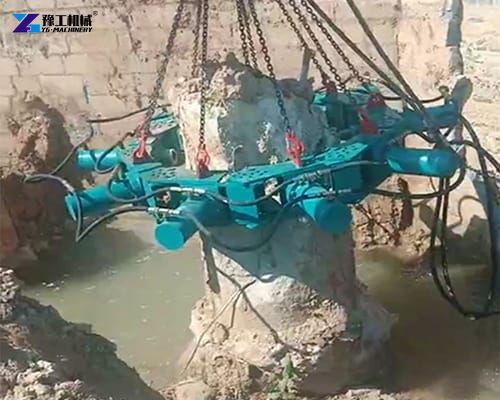

Hydraulic Pile Cutter

Hydraulic pile cutter is a construction tool or attachment powered by a hydraulic system, used to cut reinforced concrete or steel piles, commonly in foundation work, especially in bridge, high-rise, port construction projects. Powered by hydraulic systems, it delivers unparalleled force and control, enabling precise cuts in challenging environments. Different abrasive methods, hydraulic cutters minimize debris, reduce labor costs, and ensure structural integrity post-cut.

Hydraulic Pile Cutter Parameters

Model	YG-800	YG-980	YG-1150	YG-1300	YG-1500	YG-1650	YG-1800	YG-2000	YG-2150	YG-2300	YG-2500
Applicable pile diameter	600-800mm	800-900mm	1100-1150mm	1150-1300mm	1300-1500mm	1500-1650mm	1650-1800mm	1800-2000mm	2000-2150mm	2150-2300mm	2300-2500mm
Number of modules	8	9	10	11	12	13	14	15	16	17	18
Machine weight	2400kg	2700kg	3000kg	3300kg	3600kg	3900kg	4200kg	4500kg	4800kg	5100kg	5400kg
Applicable excavator model	20-30T	20-30T	20-30T	30-40T	30-40T	30-40T	Hydraulic pump station	Hydraulic pump station	Hydraulic pump station	Hydraulic pump station	Hydraulic pump station
Cylinder stroke	250mm	250mm	250mm	250mm	250mm	250mm	250mm	250mm	250mm	250mm	250mm
Working pressure	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa
Oil storage capacity of a single module	5L	5L	5L	5L	5L	5L	5L	5L	5L	5L	5L
Breaking force	70T	70T	70T	70T	70T	70T	70T	70T	70T	70T	70T

Free Quote

How Does a Hydraulic Pile Cutter Work?

Hydraulic pile breaker utilizes hydraulic pressure to power a group of cylinders fitted with blades or crush heads. When activated, these cylinders move inward simultaneously to apply immense pressure on the pile. The result is a clean and even cut across the pile cross-section.

Core Components:

• Hydraulic Cylinders: Provide the force to break or shear the pile.
• Cutting Heads or Jaws: Engage the pile and perform the cutting/crushing.
• Frame or Clamp: Secures the cutter to the pile.
• Power Pack (optional): Supplies hydraulic power if not integrated with an excavator.
• Control System: Remote control for operator safety and precision.

Free Quote

Types of Concrete Pile breaker

Round Hydraulic Pile Cutter

• Designed for circular concrete piles.
• Typically have multiple cutting cylinders arranged in a ring.
• Ideal for bridge piers, marine piles, and foundation columns.

Square Pile Cutters

• Designed specifically for square concrete piles.
• Feature a box-like structure with shear heads on all sides.
• Common in residential and industrial construction.

Free Quote

Applications of Hydraulic Pile Cutter

1. Bridge Construction and Demolition
   Cutting down old or damaged piles for bridge replacement.
   Trimming new piles to level before cap construction.
2. High-Rise Building Foundations
   Trimming excess pile height after driving piles into the ground.
   Ensuring accurate pile height for pile cap installation.
3. Infrastructure and Roadworks
   Dismantling foundation piles during highway or tunnel renovation.

Free Quote

Advantages of Hydraulic Pile Cutters

Choosing a hydraulic pile cutter over traditional cutting methods brings numerous benefits to the job site:

1. Precision Cutting
   Clean, level cuts with zero damage to the reinforcement bars.
2. Time and Labor Efficiency
   Reduces labor costs and project completion time.
3. Silent and Vibration-Free
   No hammering or blasting, minimizing noise pollution and vibrations.
4. Enhanced Safety
   The operator controls the machine remotely, reducing the risk of injury.
