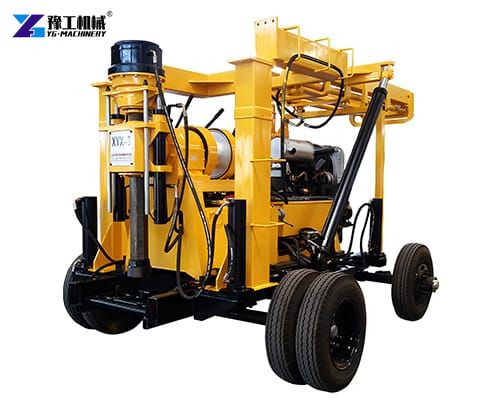

Diamond core drill rig is a specialized machine designed to cut precise cylindrical holes in hard materials such as reinforced concrete, rock, minerals, and masonry. Its ability to extract intact core samples makes it essential in construction, mining, geological exploration, and infrastructure development. The diamond core drill machine utilizes industrial-grade diamond-impregnated drill bits to achieve unparalleled precision and efficiency in core sampling operations. The integration of diamond-tipped tools ensures minimal material wastage and exceptional sample integrity, making it an indispensable tool for professionals requiring accurate subsurface analysis.
Structural Components of the Diamond Core Drilling Rig

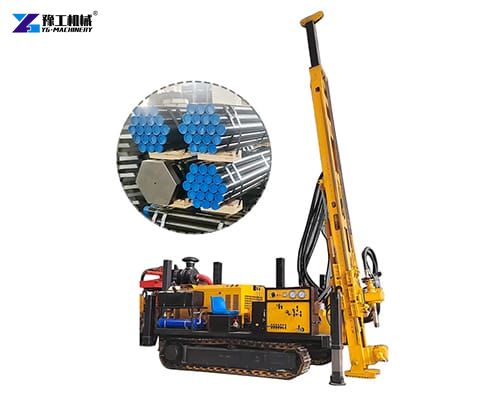

Diamond core drill rig consists of several key components working harmoniously to deliver optimal performance. The primary structural elements include a robust frame, powerful motor, hydraulic system, drilling mast, and a specialized diamond-impregnated core barrel. The frame provides stability during operation, while the motor generates the necessary torque for penetration. The hydraulic system enables precise control over drilling speed and depth, ensuring consistent performance across varying geological conditions. The drilling mast houses the core barrel and facilitates vertical movement during drilling operations. The diamond-impregnated core barrel, featuring industrial-grade diamonds bonded to a metal matrix, ensures efficient material penetration while maintaining core sample integrity.
Features of Diamond Core Drill Rig
Adjustable spindle speed Variable-speed controls allow matching drilling speed to material hardness and drilling objectives.
Stable frame and anchoring mechanism A strong, vibration-resistant frame and optional anchoring system ensure accurate drilling and operator safety.
User-friendly controls Clear, ergonomic interfaces simplify operation and reduce the learning curve for new users.

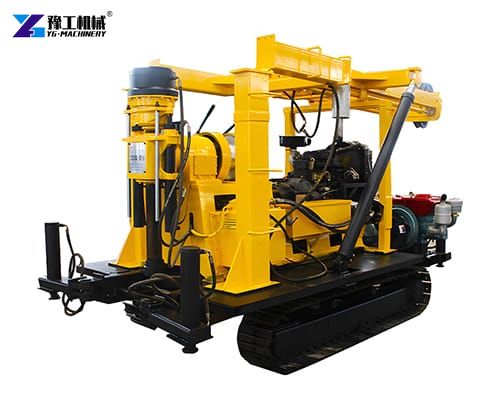

Core Drilling Equipment Applications
Construction and civil engineering Used for drilling holes for plumbing, electrical conduits, anchor bolts, rebar installation, HVAC systems, and structural testing.
Mining and mineral exploration Geologists rely on diamond core drilling to collect core samples that reveal underground mineral composition and resource potential.
Road and bridge building Project engineers use the diamond core drill rig to test asphalt and concrete thickness, strength, and wear characteristics.
Geotechnical surveying Core samples help identify soil layers, rock formations, groundwater levels, and potential hazards before development.
Research and academic studies Core samples from glaciers, rocks, and archaeological sites have provided valuable scientific insights.
Diamond Core Drilling Machine Advantages
Exceptional cutting accuracy Their ability to maintain hole diameter and roundness makes them ideal for professional work requiring high tolerances.
Clean extraction of core samples The diamond core drill rig preserves the structural integrity of the material, enabling accurate scientific and engineering analysis.
Reduced vibration and noise Unlike impact drilling methods, diamond core systems operate smoothly and quietly.
Versatility across materials From reinforced concrete to granite and from asphalt to limestone, these rigs handle a broad spectrum of substrates.
Material hardness Different substrates require different bit grades and power levels.
Drilling depth and diameter Large-diameter holes require more power, heavier frames, and stronger bits.
Budget and maintenance cost A higher-quality diamond core drill rig may require a larger upfront investment, but it often delivers longer service life.
Ease of use Ergonomic designs reduce operator fatigue and increase workflow efficiency.
