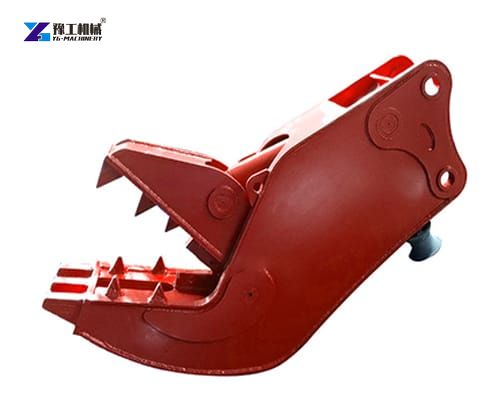

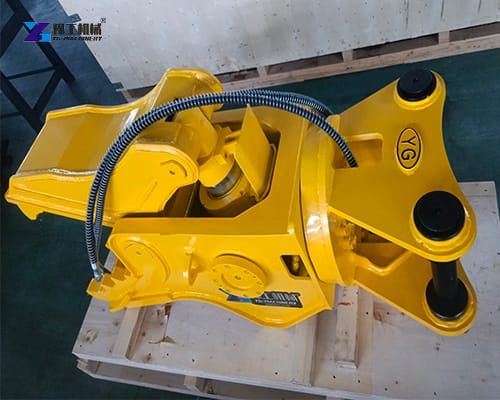

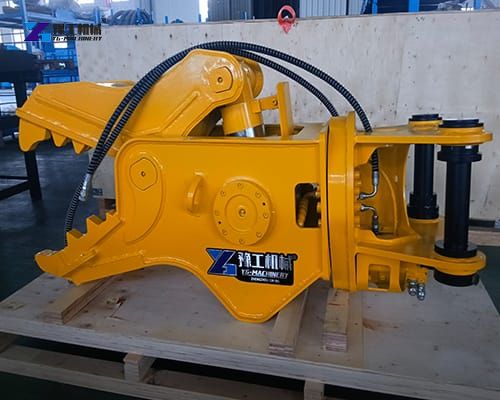

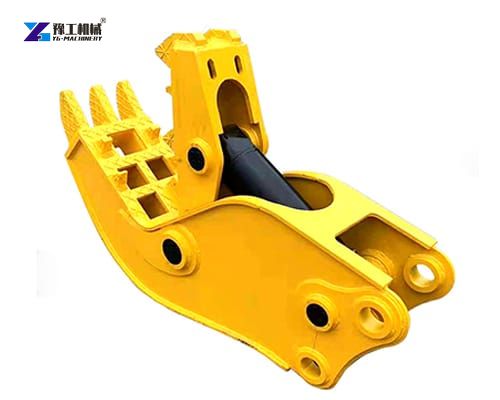

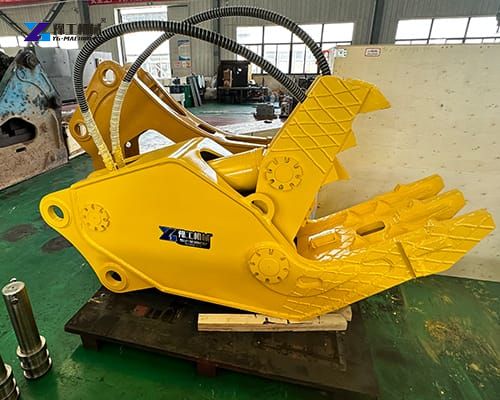

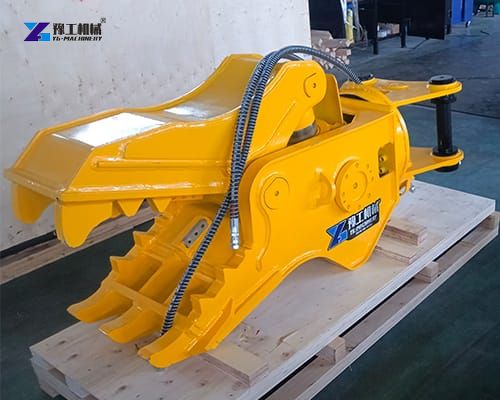

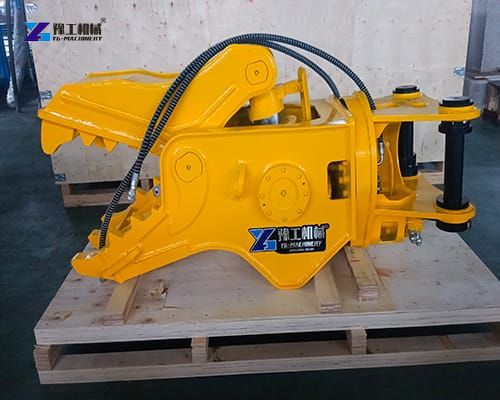

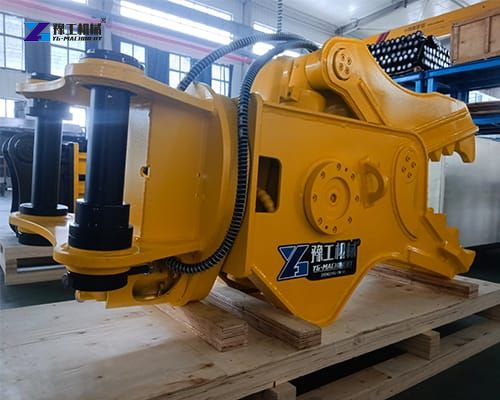

Pulverizer Attachment for Excavator

Pulverizer attachment for excavator, also known as a hydraulic pulverizer for excavator, is a specialized hydraulic attachment designed to be mounted on an excavator. It uses strong hydraulic pressure to break up concrete structures, crush rubble, and cut through reinforced concrete and metal. Pulverizers are widely used in the construction, demolition, and recycling industries for their ability to turn large concrete pieces into manageable fragments. For more information, please contact us freely.

Parameters of the Pulverizer Attachment for Excavator

Model	Unit	YG400	YG600	YG800	YG1000	YG1700
Total length	mm	1642	1895	2168	2218	3150
Total width	mm	1006	1275	1376	1598	2100
Blade length	mm	120	150	180	200	240
Max Opening Height	mm	587	718	890	1029	1400
Upper Jaw Width	mm	215	280	290	380	400
Lower Jaw Width	mm	458	586	588	720	812
Max Shear Force	kn	380	650	1650	2250	2503
Working Pressure	Bar	280	320	320	320	320
Weight	kg	670	1350	1750	2750	4709
For Excavator Weight	ton	6-9	10-15	18-26	26-30	50-80

Free Quote

Features of YG Excavator Pulverizer Attachment

• Heavy-Duty Design: The pulverizer attachment for excavator is built from high-grade alloy steel for durability and wear resistance in tough demolition environments.
• Powerful Crushing Force: Capable of crushing thick concrete and rebar with precision and speed.
• Replaceable Teeth & Blades: Easy to maintain, extend service life, and lower operating costs.
• 360° Hydraulic Rotation (Optional): Allows precise positioning and better efficiency on the job site.

Free Quote

Applications of Pulverizer Attachment for Excavator

• Demolition of concrete structures, buildings, and bridges
• On-site concrete crushing and recycling
• Separation of steel reinforcement from concrete
• Preparation of construction and demolition waste
• Road and sidewalk removal

Free Quote

Benefits of Using A Pulverizer Attachment

1. Enhanced Efficiency:
   Pulverizer attachment for excavator reduce material size on-site, minimizing transportation costs and eliminating the need for secondary crushing.
2. Rebar Separation:
   Integrated teeth and jaws separate concrete from steel, enabling clean recycling of both materials.
3. Versatility:
   Suitable for primary and secondary demolition, concrete processing, and scrap metal reduction.
4. Cost Savings:
   Lowers labor costs, reduces project timelines, and maximizes material reuse.

Free Quote

How to Choose the Right Pulverizer Attachment?

1. Excavator Compatibility
   Match the pulverizer’s weight and hydraulic requirements to your excavator’s size.
   Check carrier compatibility.
2. Jaw Opening & Crushing Force
   Larger jaw openings handle bigger debris.
   Higher crushing force (measured in tons) ensures efficient material breakdown.
3. Durability
   High-quality steel construction and wear-resistant teeth extend lifespan.
   Sealed bearings protect against dust and debris.

Maintenance Tips for Longevity

Daily Inspections: Check for cracks, loose bolts, and hydraulic leaks.
Lubrication: Regularly grease moving parts.
Teeth Replacement: Replace worn teeth to maintain crushing efficiency.
Cleaning: Remove debris after use to prevent corrosion.
Storage: Store in a dry place to avoid rust.
