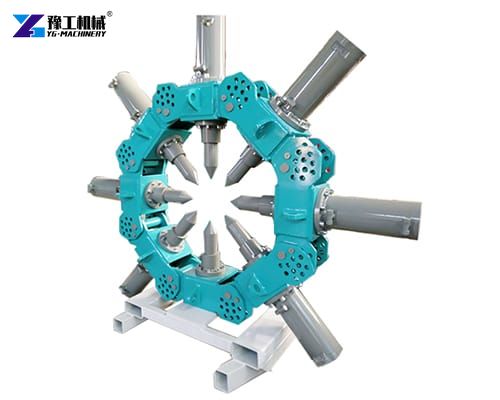

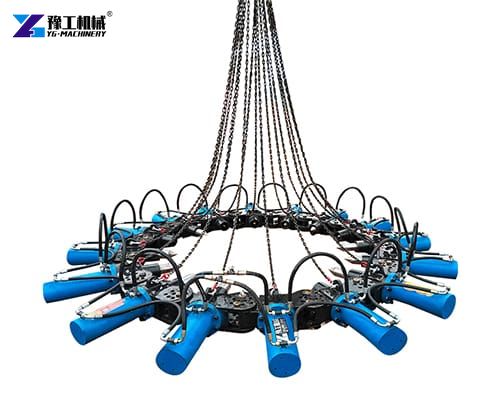

Pile Head Breaking Machine

Pile head breaking machine, also known as a pile breaker machine, is specialized construction equipment used to break or cut the heads of cast-in-place concrete piles. The process of pile head removal is a critical step before pile caps or foundation slabs can be installed. The machine operates hydraulically and can adapt to various pile diameters, ensuring uniform cutting depth and clean edges without damaging the structural integrity of the remaining pile. Enhance construction efficiency with a pile breaking machine. Durable, precise, and powerful for safe concrete pile removal on any job site.

Pile Head Breaker Machine Parameters

Model	YG-800	YG-980	YG-1150	YG-1300	YG-1500	YG-1650	YG-1800	YG-2000	YG-2150	YG-2300	YG-2500
Applicable pile diameter	600-800mm	800-900mm	1100-1150mm	1150-1300mm	1300-1500mm	1500-1650mm	1650-1800mm	1800-2000mm	2000-2150mm	2150-2300mm	2300-2500mm
Number of modules	8	9	10	11	12	13	14	15	16	17	18
Machine weight	2400kg	2700kg	3000kg	3300kg	3600kg	3900kg	4200kg	4500kg	4800kg	5100kg	5400kg
Applicable excavator model	20-30T	20-30T	20-30T	30-40T	30-40T	30-40T	Hydraulic pump station	Hydraulic pump station	Hydraulic pump station	Hydraulic pump station	Hydraulic pump station
Cylinder stroke	250mm	250mm	250mm	250mm	250mm	250mm	250mm	250mm	250mm	250mm	250mm
Working pressure	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa	35Mpa
Oil storage capacity of a single module	5L	5L	5L	5L	5L	5L	5L	5L	5L	5L	5L
Breaking force	70T	70T	70T	70T	70T	70T	70T	70T	70T	70T	70T

Free Quote

Features of Pile Head Breaking Machine

1. Hydraulic Power System: Most models, such as the hydraulic pile breaker, use high-pressure hydraulic cylinders that deliver strong impact force for efficient pile cutting.
2. Adjustable Modules: There are different types with different specifications for pile diameter and shape.
3. High Durability: Built with heavy-duty materials, it withstands continuous use in demanding construction environments.
4. Low Noise and Vibration: Different from mechanical hammers, it minimizes vibration and noise pollution, making it suitable for urban projects.
5. Ease of Operation: Operators can control the cutting process remotely, ensuring precision and safety.

Free Quote

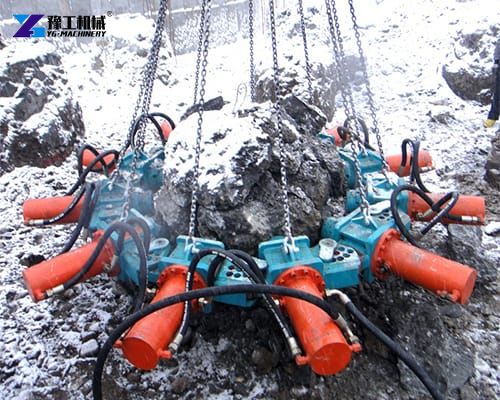

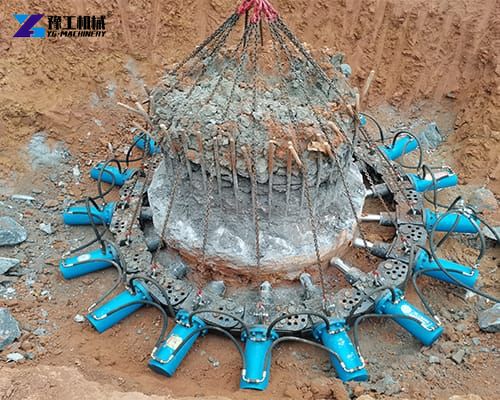

How Does a Pile Breaker Machine Work?

The pile head breaking machine is connected to an excavator or power pack through hydraulic hoses.

• Cylinders exert uniform pressure to break off the unwanted concrete section.
• The remaining reinforcement bars remain intact for easy connection to the pile cap.
• This method is efficient, reduces manual labor, and ensures a consistent finish across multiple piles.

Free Quote

Advantages of Using a Pile Head Breaker

1. Time Efficiency: Breaks multiple piles in minutes, significantly faster than manual chiseling.
2. Cost Reduction: Lowers labor costs and reduces risk of concrete damage.
3. Safety Assurance: Minimizes human exposure to hazardous operations.
4. Environmental Friendliness: Reduced noise and vibration levels make it ideal for city projects.
5. Consistency: Guarantees even cutting levels and smooth pile surfaces for subsequent construction.
