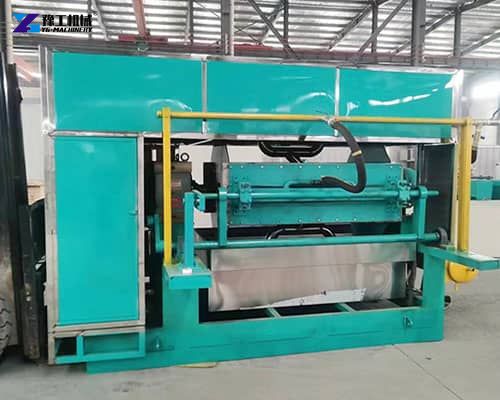

Egg tray molding machine is a specialized device designed to manufacture egg trays from waste paper pulp. The process begins with the collection of waste paper materials such as old newspapers, cardboard, and office paper. These materials are then pulped using a pulping system that breaks them down into a fine, homogeneous slurry. The next step involves the use of a molding machine. This machine consists of a series of molds that are shaped like egg trays. The pulp slurry is poured into these molds, and through a combination of vacuum suction and pressure, the excess water is removed, and the pulp takes on the shape of the mold. After the molding process, the egg trays are transferred to a drying system, where they are heated to remove any remaining moisture, resulting in a strong and durable egg tray.
Parameters of the Egg Tray Molding Machine
| Model | YG-1000-3X1 | YG-1500-4X1 | YG-2500-3X4 | YG-3000-4X4 | YG-4000-4X8 | YG-5000-5X8 | YG-7000-6X8 |
| Capacity | 1000pcs/h | 1500pcs/h | 2500pc/h | 3000pcs/h | 4000pcs/h | 5000pcs/h | 7000pcs/h |
| Power | 38kw/hour | 38kw/hour | 55kw/hour | 60kw/hour | 95kw/hour | 95kw/hour | 120kw/hour |
| Voltage | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ |
| Weight | 2500kg | 3000kg | 4000kg | 4800kg | 7000kg | 8000kg | 10000kg |
| Dimensions (main machine) | 2600*2200*1900mm | 2800*2200*1900mm | 2900*1800*1800mm | 3250*1800*1800mm | 3250*2300*2500mm | 3700*2300*2500mm | 3200*2300*2500mm |
| Paper consumption | 80kg/hour | 120kg/hour | 200kg/hour | 240kg/hour | 320kg/hour | 400kg/hour | 480kg/hour |
| Water consumption | 160kg/hour | 240kg/hour | 400kg/hour | 480kg/hour | 640kg/hour | 800kg/hour | 960kg/hour |
| Drying | dry naturally | dry naturally | multi-layer drying | multi-layer drying | multi-layer drying | multi-layer drying | multi-layer drying |
Benefits of Egg Tray Molding Machine
- High Production Efficiency
Our egg tray production machine is engineered for maximum productivity. With advanced automation technology, it can produce a large number of egg trays in a short period. Whether you are a small – scale egg producer or a large commercial operation, our machine can meet your production demands efficiently, reducing labor costs and increasing overall output. - Customizable Design
We understand that different egg producers have unique requirements. That’s why our egg tray moulding machine offers a high degree of customization. You can choose from a variety of mold designs to produce egg trays of different sizes and shapes, such as 6 – egg trays, 12 – egg trays, or even custom – designed trays for specialty eggs. - Durable Construction
We use high – quality materials in the construction of our egg tray making machine to ensure its long – term durability. The machine is built to withstand the rigors of continuous operation, with robust components that are resistant to wear and tear. - Easy to Operate and Maintain
Our egg tray molding machine is designed with user – friendliness in mind. It features a simple and intuitive control panel that allows operators to easily adjust the production parameters and monitor the machine’s performance.
How Does the Egg Tray Manufacturing Machine Work?
- Pulping Process: Waste paper is mixed with water in a hydrapulper to form a slurry.
- Molding: The pulp slurry is vacuum-formed into the mold, creating the desired tray shape.
- Drying: Wet trays are dried using sunlight or an automated drying system.
- Hot Pressing (Optional): Enhances surface finish and stackability.
- Packaging: Finished trays are stacked and packaged for sale or transportation.
Applications of Paper Pulp Molding Machine
- Egg Packaging
The primary application of egg trays produced by our egg tray molding machine is for egg packaging. These trays provide excellent protection for eggs during transportation and storage, preventing breakage and damage. They are also hygienic and easy to handle, making them a preferred choice for both egg producers and consumers. - Other Packaging Solutions
In addition to egg packaging, the paper pulp molding trays can also be used for other purposes. For example, they can be used as protective packaging for delicate items such as glassware, ceramics, and electronic components. The cushioning effect of the paper trays helps to prevent damage during shipping and handling, making them a versatile packaging solution.
