Automatic Paper Cup Manufacturing Machine

Paper Cup Manufacturing Machine For Sale

Paper Cup Manufacturing Machine For Sale

YG machinery is a national high-tech enterprise specializing in the production of a series of mechanical equipment such as paper cup manufacturing machines and paper bowl making machines. The paper cup machine is used to produce disposable paper cups. Paper cup making machine is designed to make single side&double sides PE-coated paper cups for cold and hot drinking cups as well as food containers. Paper cups can be used for tea, coffee, etc. Paper bowls can hold popcorn, takeout food, and so on. Please feel free to leave your requirement. And we will send a paper cup manufacturing machine quotation to you asap.

Paper Cup Forming Machine

Paper Cups

Free Quote

Related Products

Paper Coffeee Cup Making Machine
Paper Cup Lid Forming Machine
Plastic Cup Lid Making Machine

Automatic Paper Cup Manufacturing Machine Working Video

Paper Cup Manufacturing Machine Parameter

Paper Cup Size3-16OZ
Raw MaterialOne-side or two-side PE coated paper
Speed75-85 pcs/min
Suitable Paper Weight160-300g/㎡;±20g/㎡
Voltage Supply380V(220V) 50HZ
Cup SizeBottom35-70mm,Top45-90mm,High32-135mm
Working Air Source0.4-0.6Mpa;0.4m³/min
General Power6kw
Net Weight2000kg
Cup Side SealingEVERGREEN Ultrasonic
Bottom KnurlingHOT AIR SYSTEM
Automatic Paper Cup Machine

Automatic Paper Cup Machine

Free Quote

Paper Cup Making Machine Parameter

Paper Cup SizeMax.1400ML
Raw MaterialSinge PE or Double PE coated paper
Speed60-70 pcs/min
Suitable Paper Weight160-300g/㎡;±20g/㎡
Voltage Supply380V(220V)50HZ
Cup SizeBottom80-125mm,Top100-148mm,High125mm
Working Air Source0.4-0.6Mpa;0.4m³/min
General power12kw
Net weight2800kg
Cup Side SealingEVERGREEN Ultrasonic
Bottom KnurlingHOT AIR SYSTEM

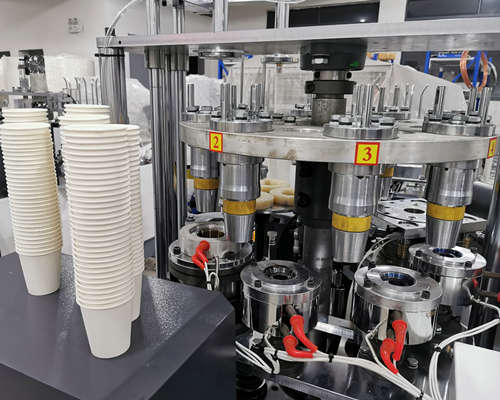

High Speed Disposable Cup Making Machine

High-Speed Disposable Cup Making Machine

Free Quote

How to Confirm the Paper Cup Size?

Paper cup sizes have many details to pay attention to. Different sizes will have different links. For example, cup bottom depth and cup angle will affect the cup stack while rim curling dimension and top diameter will affect the lid fit of cups, etc. The most important factor is how the market will accept your cup size. After you know about the market demand, we will require you provides your paper cup size drawing or samples. Our designer will measure and offer you official drawings. Forming mold design will be started upon your confirmation. Contact us if you’re looking for paper cup manufacturing machine suppliers.

Paper Cup Forming Process

Paper Cup Forming Process

Free Quote

How to Select Paper?

Mostly, cup manufacturers use PE-coated paper for production. In recent years, PLA-coated paper(bio-degradable) has also been used in certain markets along with rising environmental awareness. For paper cup industrial, we suggest manufacturers use minimum PE thickness single PE 18g/㎡ or double 18/12 g/㎡. According to the common sense of paper cup machinery(paper thickness is more important than base weight). The paper thickness tolerance of each size should be within ±0.02mm.

  • According to function: Generally speaking, cold cups need double PE-coated paper and hot cups need single PE-coated paper.
  • According to cup size: Normally, the bigger the cup’s volume, the thicker paper should be. Such as 12oz-16oz cups need 0.31mm-0.41mm thickness paper according to purposes of use both thicker or thinner paper can be formed, but the holding feeling is different when using.
  • According to use area: People from different areas have different preferences for paper thickness. Europe or North American areas prefer thicker paper usage for cups.
Coffee Cup Manufacturing Machine

Different Cups Manufacturing Machine

Free Quote

Advantages of Paper Cup Manufacturing Machine

Excellent steel frame
Simple operation panel
Steady transmission system
Safe alarm system
Professional humanized design
Easy operation and maintenance
High quality and low consumption
Heat insulation bowl machine with double layer

YG Product Series

In addition to paper cup-making machines, we also have other disposable products-making machines. For example, wet wipes making machine. Tissue paper-making machine. Water bottle filling machine. Nitrile gloves making machine. Latex gloves making machine. Please feel free to contact us if you have any needs.
